Запчасти Case IH 4494 (5-132) - REAR STEERING CYLINDER, 3 INCH (76 MM) DIAMETER X 8 INCH (203MM) STROKE (05) - STEERING

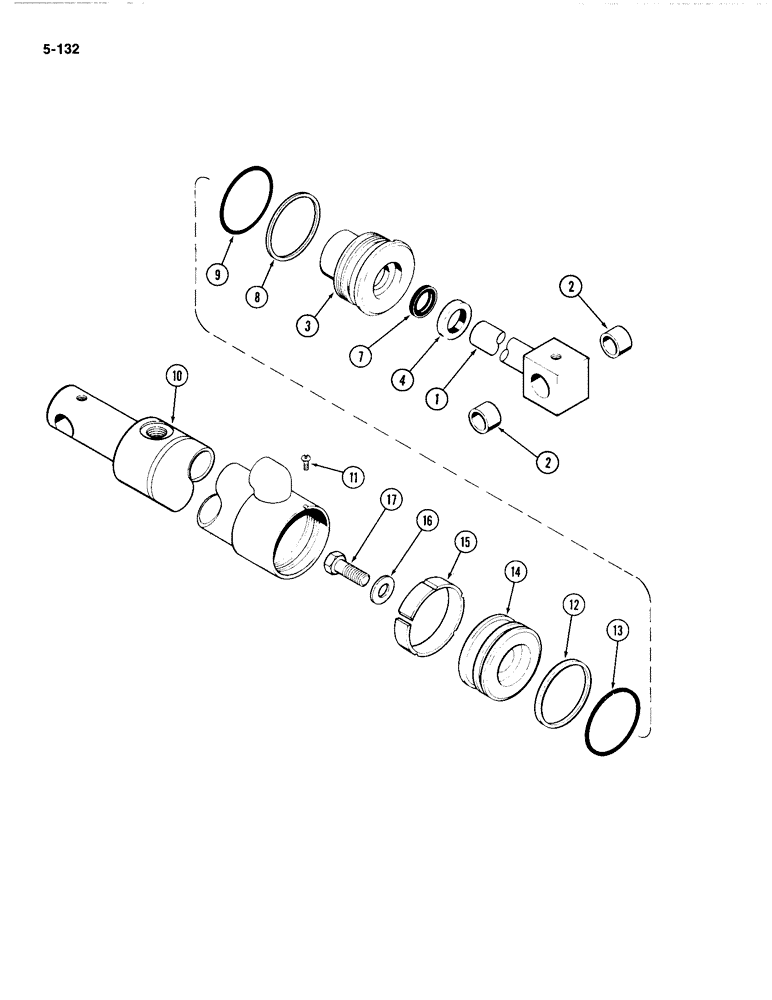

Схема запчастей Case IH 4494 - (5-132) - REAR STEERING CYLINDER, 3 INCH (76 MM) DIAMETER X 8 INCH (203MM) STROKE (05) - STEERING
15
3
8
11
2
9
16
13
4
12
14
2
17
7
10
1

Артикул

Название

Примечание

Количество

G100065

CYLINDER

ASSEMBLY - rear steering, Includes: Ref. 1 - 17

2шт.

1

G35511

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

2

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- rod eye

2шт.

3

G104143

GLAND

ASSEMBLY, Includes: Ref. 4, 7, 8, and 9

1шт.

4

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of Seal Kit, P/N G35374

1шт.

7

G35372

SEAL

- rod

1шт.

Part of Seal Kit, P/N G35374

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, 3 inch (76 mm) ID

1шт.

Part of Seal Kit, P/N G35374

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G35374

1шт.

10

G34779

TUBE

- cylinder

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - slotted round head self tapping, No. 8-32 x 1/4 inch

1шт.

G104104

ASSEMBLY - cylinder, Includes: Ref. 12 - 15

1шт.

12

G32034

RING

- seal, piston

1шт.

Part of Seal Kit, P/N G35374

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit, P/N G35374

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder, Includes: Ref. 15

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston (Not used this application)

1шт.

Part of Seal Kit, P/N G35374

1шт.

16

G35009

WASHER

- piston bolt

1шт.

17

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch (Grade 8)

1шт.

G35374

KIT

- seal, Includes: Ref. nos. 4, 7, 8, 9, 12, 13, and 15

1шт.

Выбрано товаров: 25
