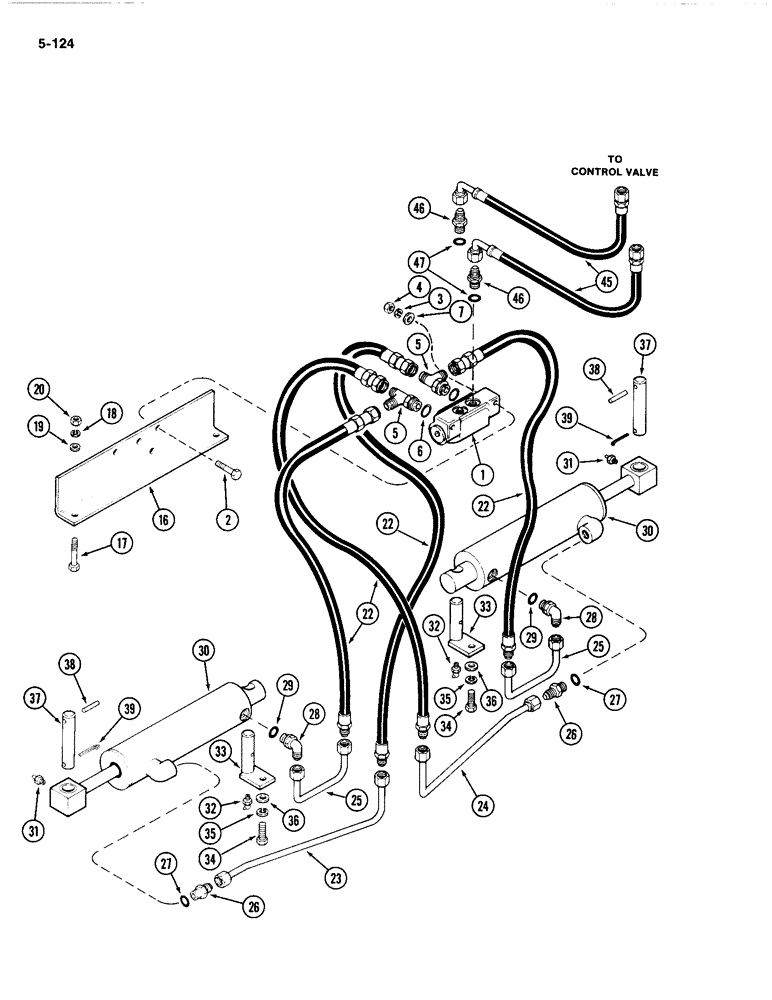

Запчасти Case IH 4494 (5-124) - REAR STEERING HYDRAULICS, CHECK VALVE AND CYLINDERS (05) - STEERING

1

A161709

VALVE

ASSEMBLY - check (See Figure 5-138)

1шт.

2

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - tee, 1/2 tube 3/4-16 inch, Includes: Ref. 6

2шт.

7

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

16

A161785

ANGLE

- mounting, check valve

1шт.

17

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Valve to cylinder tube (Replaces A161688) 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

23

A77058

TUBE

- hose to right steering cylinder

1шт.

24

A77059

TUBE

- hose to left steering cylinder

1шт.

25

A77057

TUBE

- valve, Serial Range: hose-cylinder

2шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 27

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube 3/4-16 inch thread, Includes: Ref. 29

2шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steering (See Figure 5-133)

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

33

A160384

PIN

- inner, steering cylider

2шт.

34

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

36

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

37

A160382

PIN,25.4mm OD x 132.08mm L

- outer, steering cylinder

2шт.

38

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

2шт.

39

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

45

A160449

HOSE

- control valve to check valve

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 47

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 width (16 x 2 mm width)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.
