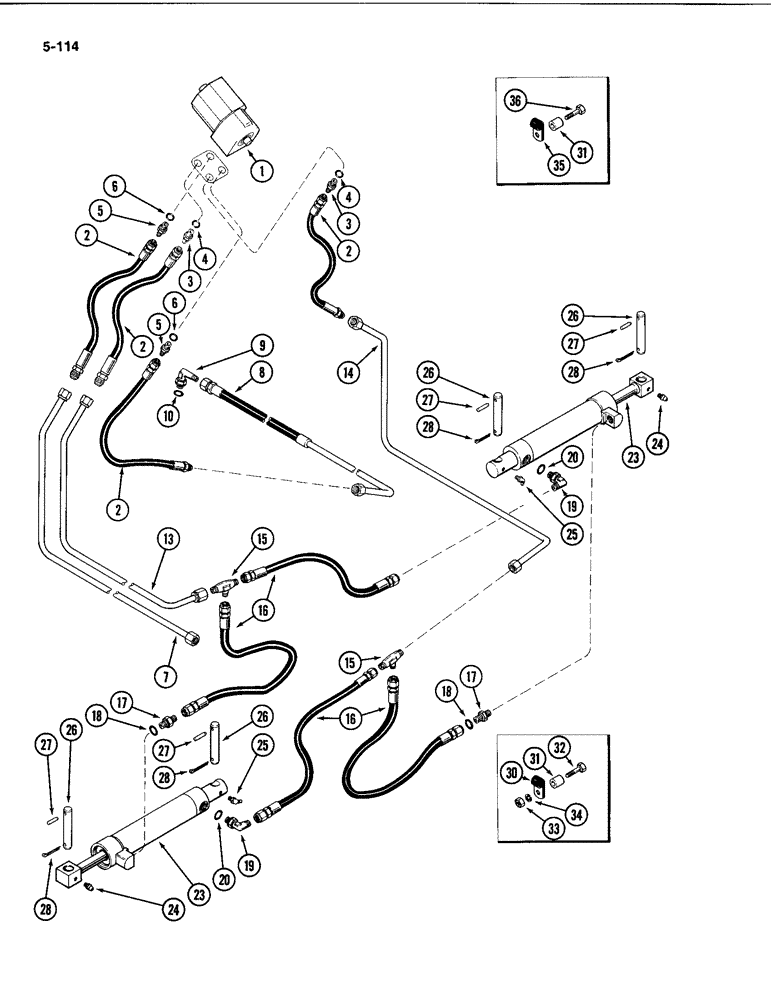

Запчасти Case IH 4494 (5-114) - FRONT STEERING HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

PUMP AND VALVE ASSEMBLY - steering (See Figure 5-128)

1шт.

2

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Valve port 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

3

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restrictive, cylinder hose (1/2 inch tube), Includes: Ref. 4

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 inch tube 3-4/16 inch thread, Incl. Ref 6

2шт.

7

A167002

TUBE

ASSEMBLY - oil cooler inlet

1шт.

8

A167007

PIPE

HOSE - pressure, hydraulic pump

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube x 3/4 inch - 16, Includes: Ref. 10

1шт.

13

A167001

PIPE

TUBE ASSEMBLY - right steering cylinder

1шт.

14

A167003

PIPE

TUBE ASSEMBLY - left steering cylinder

1шт.

15

218-594

TEE,3/4"-16, 37 Degree

- 1/2 tube x 1/2 tube 3/4-16 inch thread

2шт.

16

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

Steering Cylinder 0.38" ID x 22.00", SAE 100R2A

4шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 inch 3-4/16 inch thread, Incl. Ref 18

2шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube x 3/4-16 inch, Includes: Ref. 20

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY - front wheel steer (See Figure 5-130)

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

25

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degree, lube, 1/4-28 inch

2шт.

26

A160382

PIN,25.4mm OD x 132.08mm L

- cylinder anchor

4шт.

27

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

4шт.

28

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

30

49838

CLAMP

- tube

6шт.

31

A76093

BUSHING

SPACER - clamp

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

35

R14668

CLAMP

- pressure hose

1шт.

36

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - hex taptite, 3/8 x 1-1/4 inch

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 3/32 inch width (16 ID x 2 mm width)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.
