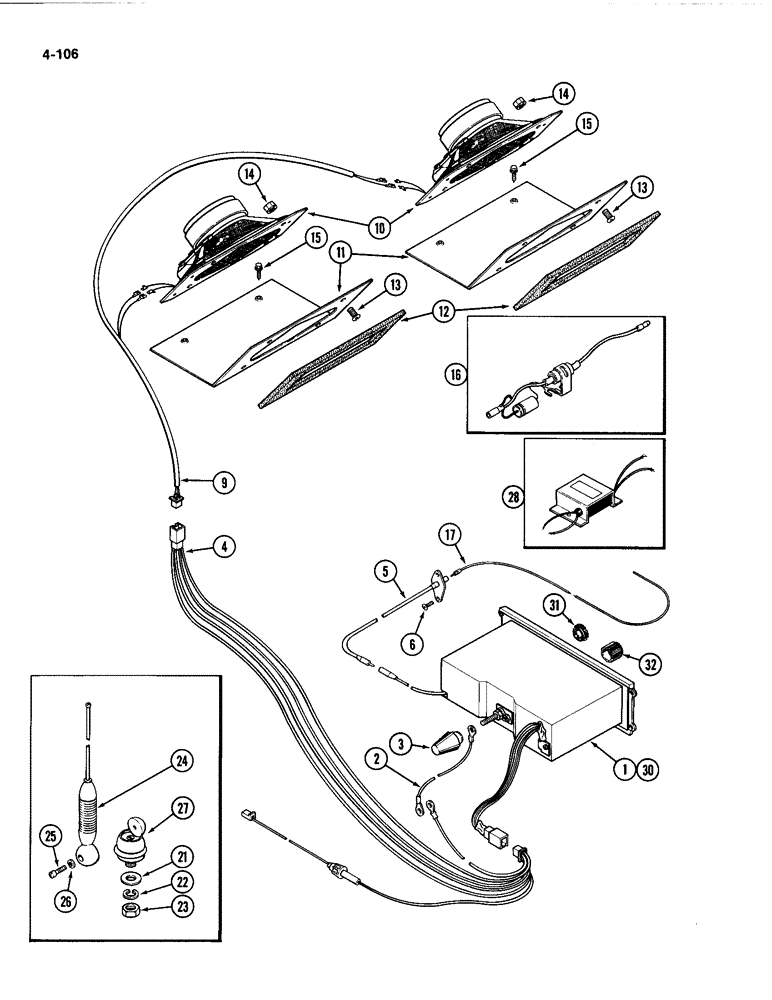

Запчасти Case IH 4494 (4-106) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A167180

RADIO

KIT - AM (Use with one piece panel), Includes: Ref. 2 - 4

1шт.

1

A167181

RADIO

KIT - AM-FM stereo (Use with one piece panel), Includes: Ref. 2 - 4

1шт.

1

A167182

RADIO

KIT - AM-FM with eight track tape player (Use with one piece panel), Includes: Ref. 2 - 4

1шт.

1

A167183

RADIO

KIT - AM-FM with cassette tape player (Use with one piece panel), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground (Order kit)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining (Order kit)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire (Order kit)

1шт.

5

F64799

CABLE

- antenna

1шт.

6

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, No. 10-16 x 1/2 inch

2шт.

9

F66160

HARNESS

- speaker lead (Replaces F64727)

1шт.

10

F66124

HARNESS

SPEAKER - radio (Replaces F64847)

2шт.

11

F64667

PLATE

- speaker

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, No. 10-16 x 1/2 inch

4шт.

16

F64184

CAPACITOR

SUPPRESSOR - noise (Mounted on blower motor)

1шт.

17

F64182

CABLE

- antenna

1шт.

A177631

ANTENNA

- whip, radio (Machinery Item) 35.98" cable, Includes: Ref. 21 - 27

1шт.

21

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm)

1шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

23

129-125

NUT,1/2"-20, G5

1шт.

24

NSS

NOT SOLD SEPARAT

ANTENNA - radio

1шт.

25

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted head, No. 10-32 x 5/8 inch

1шт.

26

192-149

WASHER

- lock, 3/16 inch

1шт.

27

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

28

A180120

FILTER

- radio noise

1шт.

30

A180796

RADIO

KIT - AM (Includes Refs. 2, 3 and 4) (Use with three piece panel), Includes: Ref. 31 and 32

1шт.

30

A180797

RADIO

RADO KIT - AM-FM stereo (Includes Refs. 2, 3 and 4) (Use with three piece panel), Includes: Ref. 31 and 32

1шт.

30

A180798

RADIO

KIT - AM-FM stereo with cassette taple player and weather band (Includes Refs. 2, 3 and 4) (Use with three piece panel), Includes: Ref. 31 and 32

1шт.

31

A180058

KNOB

- control, volume

1шт.

32

A180059

KNOB

- control, tuning

1шт.
