(4-102) - ENGINE AUTOMATIC SHUT-OFF

Запчасти Case IH 4494 (4-102) - ENGINE AUTOMATIC SHUT-OFF (04) - ELECTRICAL SYSTEMS

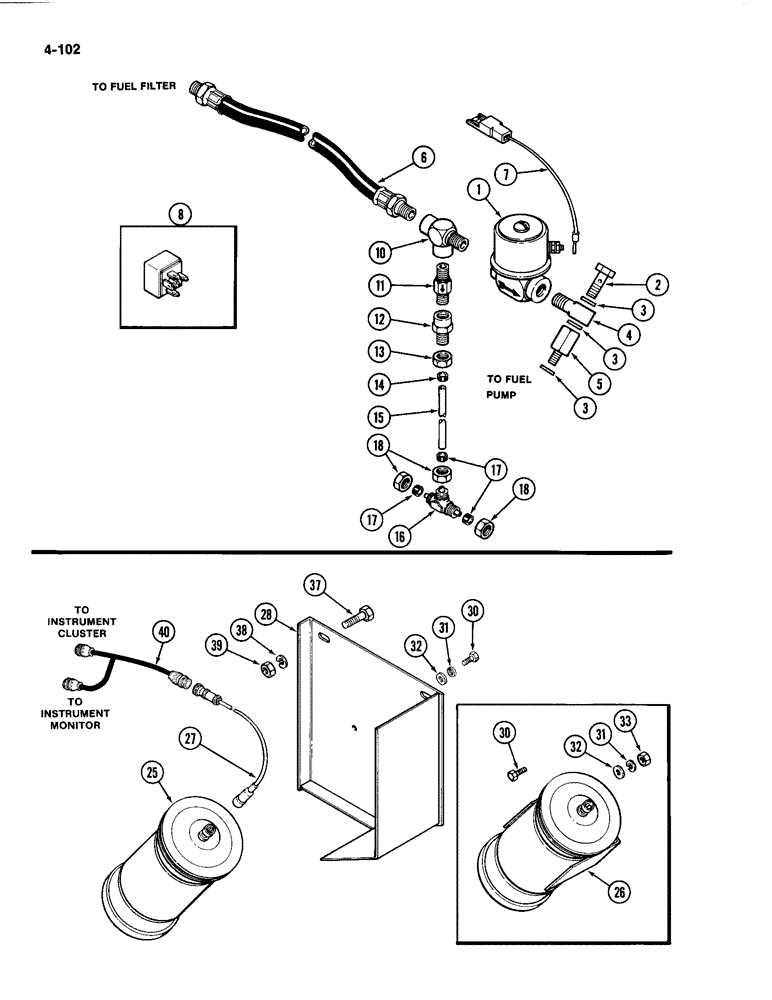

Схема запчастей Case IH 4494 - (4-102) - ENGINE AUTOMATIC SHUT-OFF (04) - ELECTRICAL SYSTEMS
30
25
7
13
32
3
17
30
31
6
39
31
1
37
14
12
4
5
8
3
16
26
33
32
10
27
18
2
15
28
40
17
11
18
3
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A181081

SHUTOFF KIT - automatic, engine (Machinery Item) (Replaces A167617)

1шт.

1

A176720

VALVE

ASSEMBLY - shutoff

1шт.

2

A47945

BOLT

CONNECTOR BOLT - hollow

1шт.

3

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- fitting

3шт.

4

A47919

FITTING

- valve, banjo

1шт.

5

A47944

ADAPTER

- extension

1шт.

6

A47946

HOSE

ASSEMBLY - valve

1шт.

7

A167616

ELECTRICAL WIRE

WIRE - valve

1шт.

8

A147176

RELAY

- shutoff (30 ampere)

1шт.

10

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- brass, 1/4 x 1/4 x 1/4 inch PT

1шт.

11

A180904

VALVE

- relief, pressure

1шт.

12

222-5132

FITTING,7/16"-24 x 1/4" NPT Fem

CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-24 thread x 1/4 inch PT

1шт.

13

222-5180

TUBE NUT,7/16"-24

- hex, 7/16"- 24

1шт.

14

222-5185

SLEEVE,1/4" Tube

- tube, 1/4 "

1шт.

15

A48233

TUBE - nylon (Order l108947 and, Serial Range: cut-length)

1шт.

16

222-2750

TEE

ASSEMBLY - 1/4 tube 7/16-24 inch thread

1шт.

17

222-2610

SLEEVE

- tube, 1/4 inch

3шт.

18

222-2600

NUT

NUT - hex, 7/16-24 inch thread

3шт.

A169281

SENSOR ATTACHMENT - ground speed (Machinery Item), Includes: Ref. 25 - 40

1шт.

25

A177139

RELAY

SENSOR - ground speed (With tapped holes), attachment

1шт.

26

A169110

SENSOR

- ground speed (Order A177139 sensor), attachment

1шт.

27

A167862

HARNESS

ASSEMBLY - sensor, ground speed attachment

1шт.

28

A181784

BRACKET

- sensor mounting (Replaces A177180), ground speed attachment

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Ground speed sensor attachment Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground speed sensor attachment 3/8"

2шт.

32

195-525

WASHER,3/8", SAE

- fit, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm), ground speed sensor attachment

4шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used with A169110 sensor), Ground speed attachment 3/8"-16, G5

1шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Ground speed sensor attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Ground speed sensor attachment 1/2"

2шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

Ground speed sensor attachment 1/2"-13, G5

2шт.

40

A177090

HARNESS

- implement monitor, ground speed sensor attachment

1шт.
