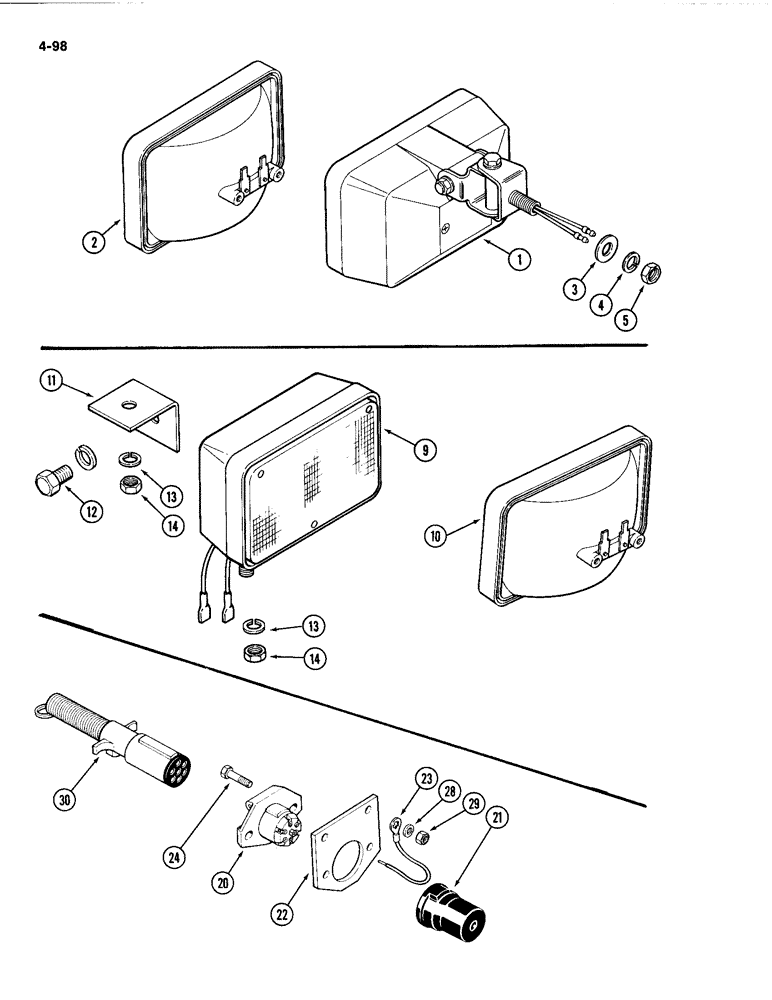

Запчасти Case IH 4494 (4-098) - FLOOD LAMP ATTACHMENTS, UPPER REAR (04) - ELECTRICAL SYSTEMS

1

A165065

LAMP

ASSEMBLY - upper flood, cab (Order A177347 kit), Includes: Ref. 2 - 5

1шт.

2

A48265

LAMP

BULB - seal beam (Includes screws)

1шт.

3

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x2 mm)

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

A166652

LAMP

ATTACHMENT - flood lamp, upper (Machinery Item), front, Includes: Ref. 9 - 14

1шт.

9

A165347

LAMP

ASSEMBLY - flood (Order A177347 Kit), upper front, Includes: Ref. 10

1шт.

10

A48265

LAMP

BULB - seal beam (Includes screws), upper front

1шт.

11

A16655

BRACKET - mounting (Not used this application), upper front

1шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (1 used this application), upper front 1/2"

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Upper front 1/2"-13, G5

1шт.

20

A145795

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - auxiliary (female), outlet socket

1шт.

21

A169283

BOOT

- connector, auxiliary outlet socket

1шт.

22

A166636

SUPPORT ASSY.

BRACKET - outlet mounting, auxiliary socket

1шт.

23

A163117

ELECTRICAL WIRE

WIRE - ground, outlet, auxiliary socket

1шт.

24

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Auxiliary outlet socket Hex, 5/16"-18 x 1 1/4", G5

4шт.

28

192-203

WASHER - lock, 5/16 inch NC, auxiliary outlet socket

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

Auxiliary outlet socket 5/16"-18, G5

4шт.

30

A139672

PLUG

ASSEMBLY - male connector, auxiliary outlet socket

1шт.
