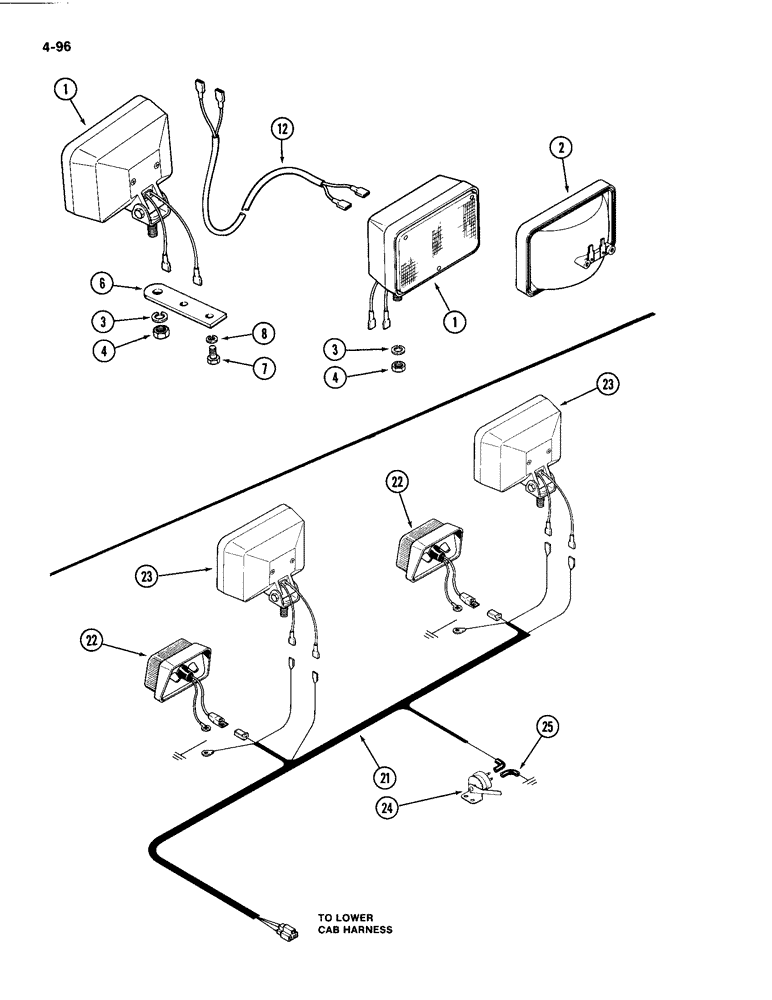

Запчасти Case IH 4494 (4-096) - FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

A165347

LAMP

ASSEMBLY - flood (2 front and 2 rear) (Order A177347 kit), Includes: Ref. 2

4шт.

2

A48265

LAMP

- sealed beam

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

A165598

BRACKET

- mounting, rear lamp

2шт.

7

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

BOLT - hex self-tapping, 3/8 NC x 1 inch

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

A176391

HARNESS

ASSEMBLY - lower rear flood lamp

1шт.

Harness used to move lower rear flood lamps cab to fender.

1шт.

21

F64796

HARNESS

- cab rear

1шт.

22

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-94), cab rear harnes

2шт.

23

REF

INSTRUCTION

LAMP ASSEMBLY - lower rear flood, cab rear harnes

2шт.

24

A33977

SWITCH

- brake light, cab rear harnes

1шт.

25

A59711

ELECTRICAL WIRE

WIREE - ground, cab rear harnes

1шт.

No harness for the Front Flood Lights on Fenders. These will have to be made.

1шт.
