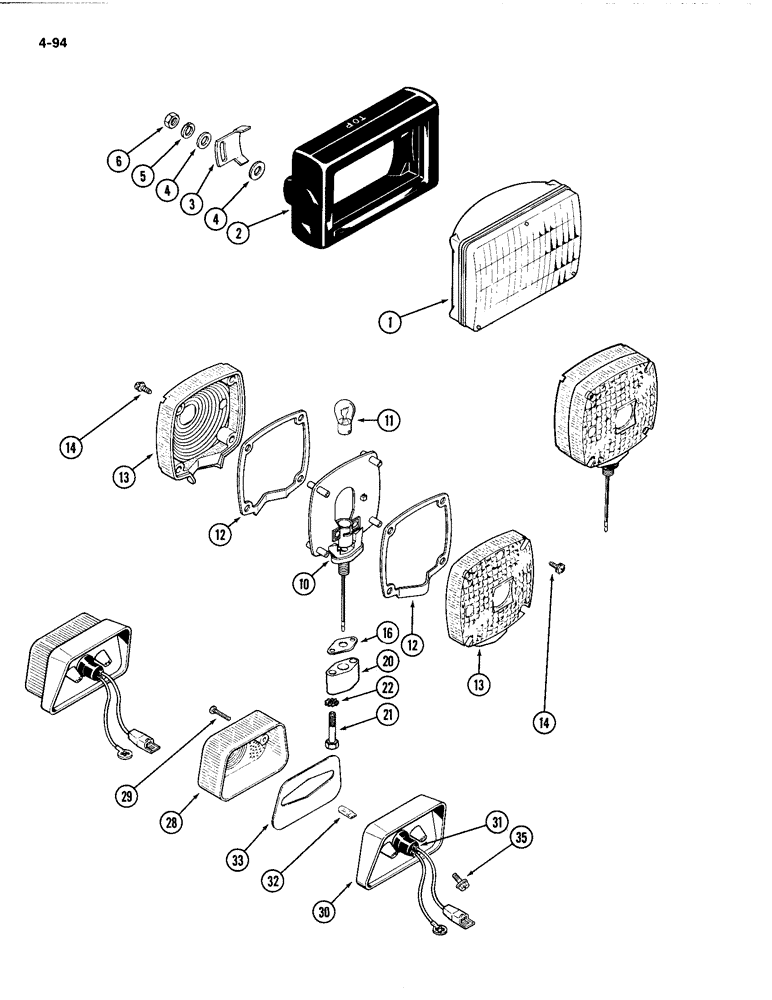

Запчасти Case IH 4494 (4-094) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

- head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNTING - shock, head lamp

2шт.

3

A146355

CLAMP

CLIP - lamp mounting

4шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher, Includes: Ref. 10 - 16

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

11

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

12

A43731

GASKET

- lens, flasher lamp

2шт.

A44202

KIT

LENS KIT - replacement, flasher lamp, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LENS - flasher lamp

8шт.

14

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips slotted, No. 8-3/4 inch, flasher lamp

8шт.

16

F63435

GASKET

- lamp mounting. lamp

1шт.

129-125

NUT,1/2"-20, G5

(Not used this application), flasher lamp, Includes washer, bolts and studs 1/2"-20, G5

1шт.

95-8

WASHER,1/2"

flat (9/16 inch ID) (Not used this application), flasher lamp 1/2"

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Not used this application), flasher lamp Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Not used this application), flasher lamp 1/4"

2шт.

A45118

STUD

- mounting, 1/2 NF x 1-3/8 inch (Not used this application), flasher lamp

1шт.

20

F64683

SPACER

- mounting, flasher lamp

2шт.

21

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Flasher lamp

4шт.

22

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external tooth lock, 1/4 inch, flasher lamp

4шт.

A164673

LAMP

ASSEMBLY - tail, Includes: Ref. 28 - 33

2шт.

28

A47056

LENS

- lamp, red, tail

1шт.

29

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head slotted, No. 8-18 x 1 inch, tail lamp

2шт.

30

F64797

BASE

- lamp, tail

1шт.

31

F64795

SOCKET

ASSEMBLY - bulb, tail lamp

1шт.

32

D71346

TAIL LAMP,12V

BULB - lamp (No. 168), tail

1шт.

33

A47055

GASKET

- lens, tail lamp

1шт.

35

187-1308

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

SCREW - flanged hex slotted, 1/4-20 x 3/4 inch, tail lamp

4шт.
