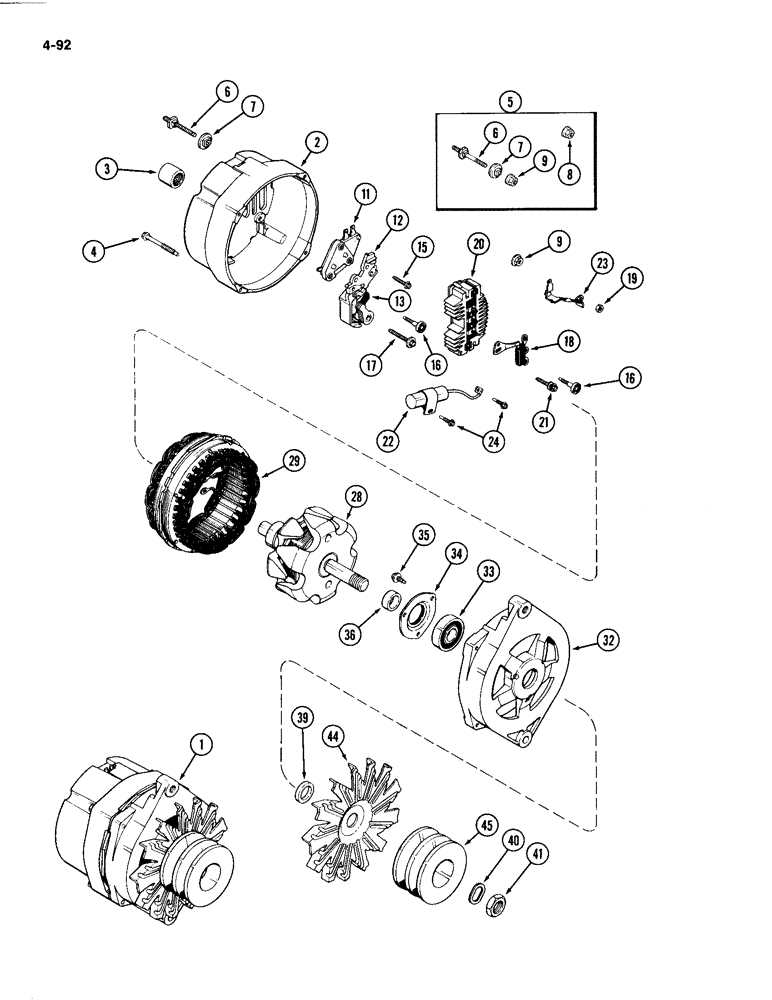

Запчасти Case IH 4494 (4-092) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

A164233

ALTERNATOR

ALTERNATOR ASSEMBLY - 105 ampere, Delco-Remy No. 1105540 (J I Case Installed)(Order A163085, A164281 and L59716), Includes: Ref. 2 - 41

1шт.

1

A163085

ALTERNATOR

ALTERNATOR ASSEMBLY - engine (Service only)

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297246

REMAN-ALTERNATOR

Reman for New PN A163085

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 80 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 80 Amp Alternator

1шт.

1

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

1

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 80 Amp Alternator

1шт.

1

104023A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 80 Amp Alternator

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator (Higher Amp Version of 72 amp 103804A1R)

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

A48252

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A48253

ROLLER BEARING

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through hex, No. 10-24 x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

1шт.

11

A45213

REGULATOR

REGULATOR - voltage

1шт.

12

A48256

HOLDER

HOLDER ASSEMBLY - brush

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH - alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

1шт.

17

A48257

SCREW,#8 - 32 x 1.486"

SCREW - brush holder, retaining

1шт.

18

A48254

DIODE

DIODE - trio

1шт.

19

129-16

NUT,#8-32

NUT, #8-32

3шт.

20

A48255

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

23

A48258

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket

1шт.

28

A48250

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

29

A48251

STATOR

STATOR ASSEMBLY - alternator

1шт.

32

A48259

FRAME

FRAME - drive end

1шт.

33

A49389

BEARING ASSY

BEARING - ball, drive end

1шт.

34

R15101

PLATE

PLATE - bearing retainer

1шт.

35

A43699

SCREW,Hex, #10 - 24 x 0.52"

SCREW - bearing plate retaining

3шт.

36

A48261

COLLAR

COLLAR - rotor shaft, inner

1шт.

39

A48260

COLLAR

COLLAR - rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A164281

FAN

FAN - alternator ventilating

1шт.

45

L59716

PULLEY

PULLEY - drive

1шт.
