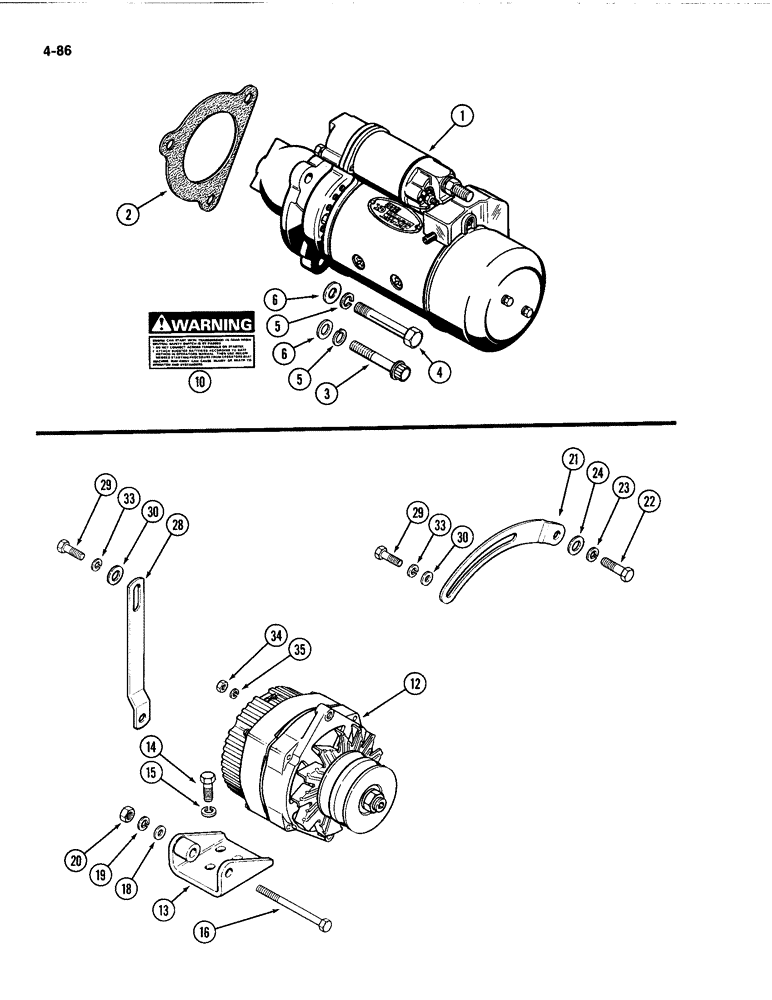

Запчасти Case IH 4494 (4-086) - STARTER MOUNTING, ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-88)

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

1

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - starter mounting

1шт.

3

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 12 point flanged cap, 1/2 NC x 3-1/4 inch

1шт.

4

113-2432

BOLT,Locking, 1/2" - 13 x 2", Gr 5

BOLT - hex lock, 1/2 NC x 2 inch

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

A75865

WASHER

WASHER - flat, hardened

3шт.

10

321-3709

DECAL

DECAL - danger, starter warning

1шт.

12

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-92), mounting

1шт.

13

A161334

BRACKET

BRACKET - alternator mounting

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Alternator mounting Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

3шт.

16

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch, alternator mounting

1шт.

18

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm), alternator mounting

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Alternator mounting 3/8"-16, G5

1шт.

21

A163126

STRAP

STRAP - rear support (Replaces A166828), alternator mounting

1шт.

22

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

BOLT, , Alternator mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

1шт.

24

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), alternator mounting

1шт.

28

A163125

STRAP

STRAP - adjusting (Replaces A166827), alternator mounting

1шт.

29

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

BOLT, , Alternator mounting Hex, M10 x 25, 8.8, Full Thd

2шт.

30

195-104

WASHER,3/8"

WASHER - flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), alternator mounting

2шт.

33

892-1110

LOCK WASHER,M10

WASHER - lock, , alternator mounting M10

2шт.

34

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, M6 x 1, Alternator mounting

1шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 1/4"

1шт.
