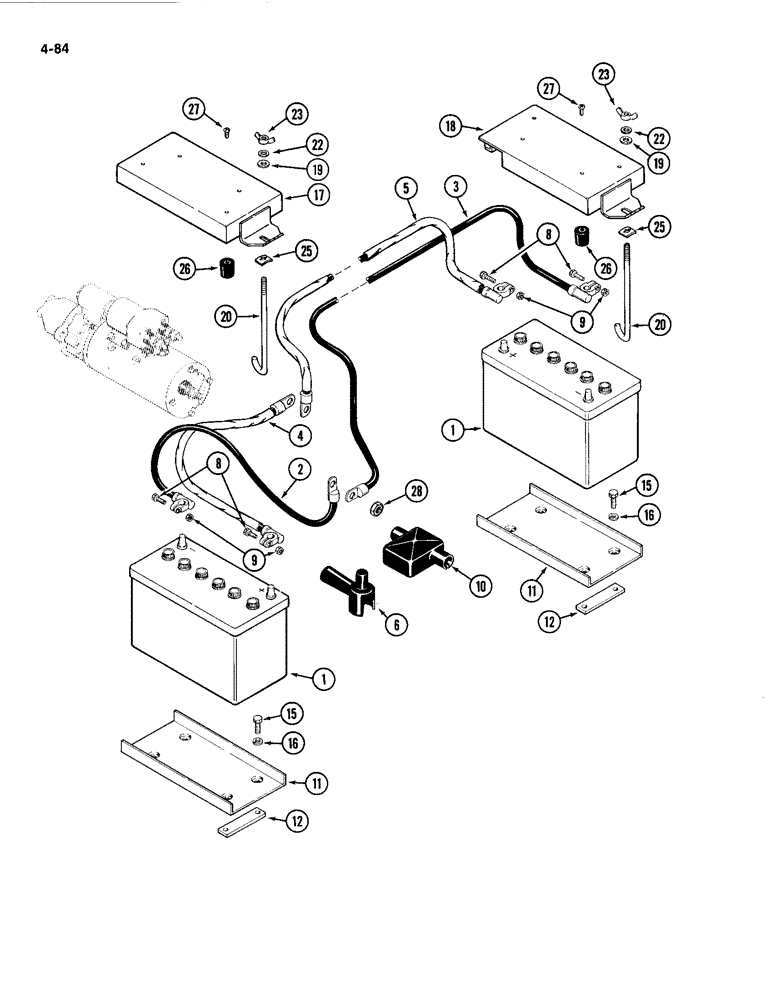

Запчасти Case IH 4494 (4-084) - BATTERIES, CABLES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt

2шт.

2

A165027

CABLE

ASSEMBLY - battery, negative right

1шт.

3

A75820

CABLE

ASSEMBLY - battery, positive right

1шт.

4

A166539

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, negative left

1шт.

5

A75821

CABLE

ASSEMBLY - battery, positive left

1шт.

6

A181302

BOOT

- starter terminal (Replaces A153796)

1шт.

8

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch

4шт.

9

129-737

NUT

- hex, 5/16 inch NC

4шт.

10

A139372

CAP

- protective, terminal

2шт.

11

A75848

CARRIER

- battery

2шт.

12

A75849

SPACER

- carrier

4шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

A169482

COVER

- battery, right

1шт.

18

A169483

COVER

- battery, left

1шт.

19

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

20

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hold down, 5/16 NC x 10 inch

4шт.

22

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

4шт.

23

G49020

NUT

- wing, 5/16 inch NC

4шт.

25

131-640

NUT

- speed, 5/16 inch Tinnerman

4шт.

26

A75847

FENDER

BUMPER - battery cover

8шт.

27

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- truss head slotted, 1/4 NC x 3/8 inch

8шт.

28

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex jam lock, 1/2 inch NC

1шт.
