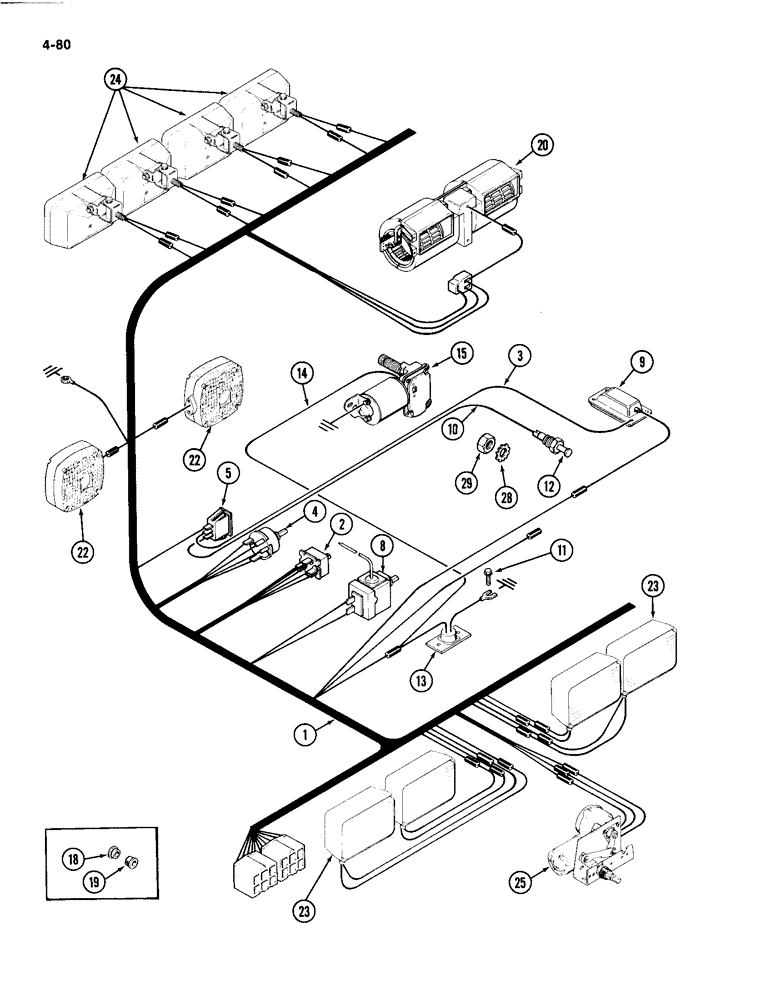

Запчасти Case IH 4494 (4-080) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring (Replaces F64800)

1шт.

2

A42622

SWITCH

- blower

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome, Serial Range: light-switch

1шт.

4

F43359

SWITCH

- windshield wiper

1шт.

5

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

8

L73646

SWITCH

- air conditioning

1шт.

9

F89772

LAMP

- dome

1шт.

10

F64127

ELECTRICAL WIRE

WIRE - switch to door switch

1шт.

11

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SWITCH - hex washer head, No. 10-16 x 1/2 inch

1шт.

12

F63895

SWITCH

- door opening, lamp

1шт.

13

F98279

INTERIOR LIGHT

LAMP - console

1шт.

14

F64723

HARNESS

ASSEMBLY - rear window wiper

1шт.

15

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See Figure 9-482)

1шт.

18

353-701

BUSHING

- harness

1шт.

19

F64468

BUSHING

- terminal

1шт.

20

REF

INSTRUCTION

BLOWER ASSEMBLY - cab air (See Figure 9-460)

1шт.

22

REF

INSTRUCTION

LAMP ASSEMBLY - flasher (See Figure 4-94)

2шт.

23

REF

INSTRUCTION

LAMP ASSEMBLY - upper front flood (See Figure 4-98)

1шт.

24

REF

INSTRUCTION

LAMP ASSEMBLY - upper rear flood (See Figure 4-98)

1шт.

25

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See Figure 9-480)

1шт.

28

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, (Used with Ref. 12) Ext Tooth, 5/16"

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

Used with Ref. 12 5/16"-18, G5

1шт.
