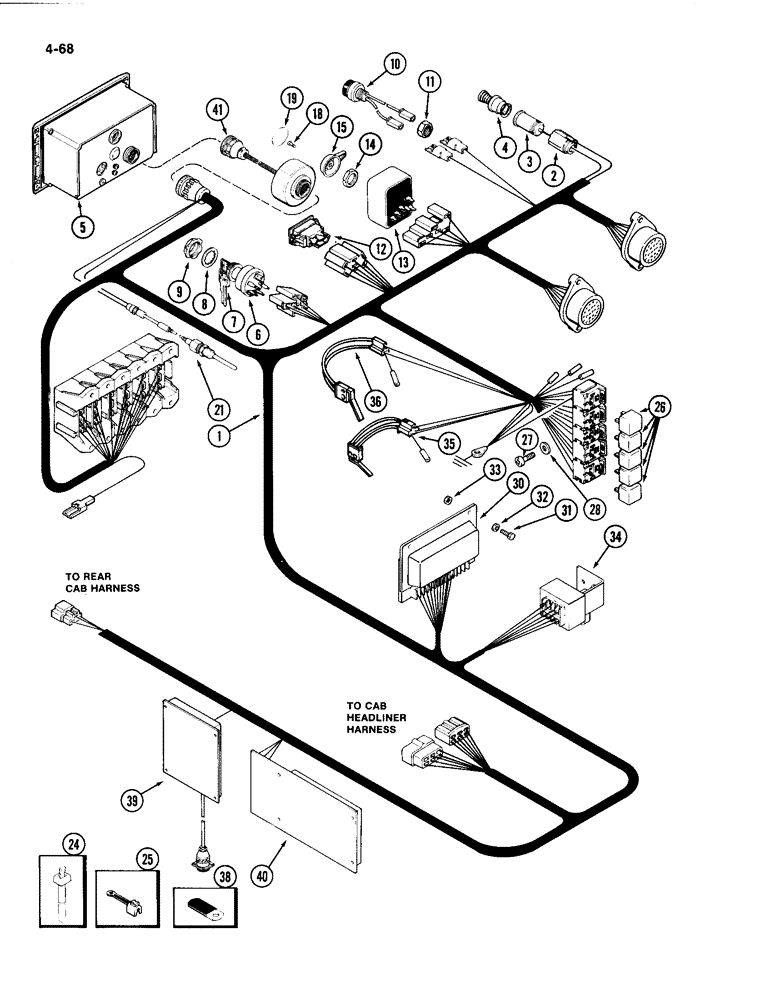

Запчасти Case IH 4494 (4-068) - LOWER CAB HARNESS, PRIOR TO P.I.N. 8866676 (04) - ELECTRICAL SYSTEMS

1

A177750

HARNESS

ASSEMBLY - lower cab (Replaces A167029)

1шт.

2

F63738

CIGAR LIGHTER

SHELL - lighter

1шт.

3

F63530

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - cigar lighter

1шт.

4

A177447

LIGHTER, CIGARETTE

ELEMENT - push in, lighter

1шт.

5

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-82)

1шт.

6

D134737

IGNITION SWITCH

SWITCH - ignition

1шт.

7

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

8

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal lock, 1 inch

1шт.

9

A77314

NUT

- hex, ignition switch mounting

1шт.

10

A135520

SWITCH

- Ether Start

1шт.

11

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

12

A163009

SWITCH

- light

1шт.

#12 connector is P/N 245781C1

1шт.

13

A77184

SWITCH

- flasher and turn signal

1шт.

14

131-428

LOCK NUT,PAL, 3/4"-20

NUT - speed, 3/4-20 inch

1шт.

15

A177140

KNOB

- flasher switch (Replaces A141736)

1шт.

18

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- pan head slotted, 5-40 x 1/2 inch

1шт.

19

A167962

DISC

PLATE - insert, flasher switch (If equipped)

1шт.

21

A162936

TRANSMITTER

THERMOCOUPLE - exhaust

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

A169696

CLAMP

- retaining

2шт.

26

A147176

RELAY

- 30 ampere

5шт.

27

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips pan head, No. 10-24 x 3/4 inch

2шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

2шт.

30

A164734

BOARD

ASSEMBLY - relay, transmission (Order A177703)

1шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

32

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

8шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

34

A180201

SWITCH

ASSEMBLY - range

1шт.

35

A166333

SWITCH

- micro three wire clutch

1шт.

36

A167041

SWITCH

- micro two wire clutch

1шт.

38

A37179

CLIP

- harness

1шт.

39

REF

INSTRUCTION

BOX - hitch control (See Figure 4-104)

1шт.

40

REF

INSTRUCTION

CONTROL BOX AND HARNESS ASSEMBLY - rear steering (See Figure 5-116)

1шт.

41

A186267

HARNESS

FILTER - frequency interference

1шт.
