Запчасти Case IH 4494 (3-064) - FUEL TANK, 504BDT DIESEL ENGINE, PRIOR TO P.I.N. 8866672 (03) - FUEL SYSTEM

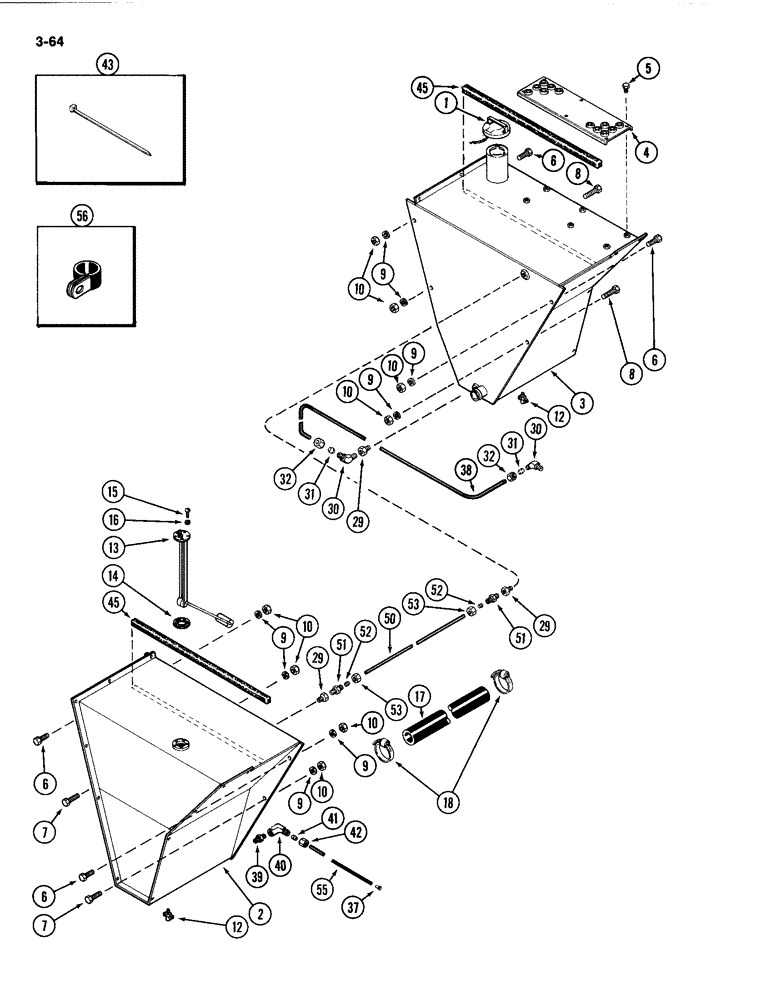

Схема запчастей Case IH 4494 - (3-064) - FUEL TANK, 504BDT DIESEL ENGINE, PRIOR TO P.I.N. 8866672 (03) - FUEL SYSTEM
8
12
53
52
9
6
10
18
2
9
32
52
37
13
29
3
5
14
12
6
9
10
45
29
29
55
45
7
53
42
10
6
1
10
31
9
10
38
7
30
9
32
41
10
56
4
9
50
16
40
17
51
8
15
30
51
39
31
6
43

Артикул

Название

Примечание

Количество

1

51200859

CAP

- filler, left tank

1шт.

2

A160870

TANK

- fuel, right side

1шт.

3

A165103

TANK

- fuel, left side

1шт.

4

A165509

PLATE

- step

1шт.

5

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

6шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

129-107

NUT,5/8"-11, G5

8шт.

12

217-81

VALVE

- drain, 1/8 inch PT

2шт.

13

A160044

SENDER UNIT

SENDER - fuel level (in right tank)

1шт.

14

A11822

GASKET

-, Serial Range: sender-tank

1шт.

15

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- round head, No. 10-32 x 7/16 inch

5шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

17

A160192

HOSE,2.00" ID x 29.00", SAE 30R1 PER SAE J30 OR SAE 30R2 TYPE 2

2.00" ID x 29.00", SAE 30R1 per SAE J30 - Passage, Tank to Tank

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

29

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- brass, 1/4 x 1/4 inch

3шт.

30

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 31 and 32

2шт.

31

222-2611

SLEEVE

- flanged, 3/8 tube

1шт.

32

222-2601

NUT

NUT - hex, 3/8 tube, 17/32-24 inch thread

1шт.

37

A141160

INSERT

- tube

1шт.

38

A161184

TUBE

- fuel tank to pump, 3/8 x 86 inch (10 x 2184 mm) (Order and cut from A167912)

1шт.

39

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- 1/4 x 1 inch

1шт.

40

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 tube x 1/4 inch PT, Includes: Ref. 41 and 42

1шт.

41

222-5186

SLEEVE,3/8" Tube

- 3/8 inch (10 mm) tube

1шт.

42

222-5181

NUT,9/16"-24

NUT - 3/8 inch (10 mm) tube

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

45

A150492

FOAM

- sealing, top of tank

2шт.

50

A63670

TUBE

- vent, tank to tank, 3/8 inch O.D. x 30 inch (10 x 762 mm) (Order and cut from A167912)

1шт.

51

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - 3/8 tube x 1/4 inch PT, Includes: Ref. 52 and 53

2шт.

52

222-2611

SLEEVE

- 3/8 inch tube

1шт.

53

222-2601

NUT

NUT - hex, 3/8 tube, 17/32-24 inch thread

1шт.

55

A164699

TUBE - leak off return from injector, 3/8 inch O.D. x 108 inch (10 x 2743 mm) (Order and cut from L108947)

1шт.

56

R14668

CLAMP

- retaining

1шт.

Выбрано товаров: 35
