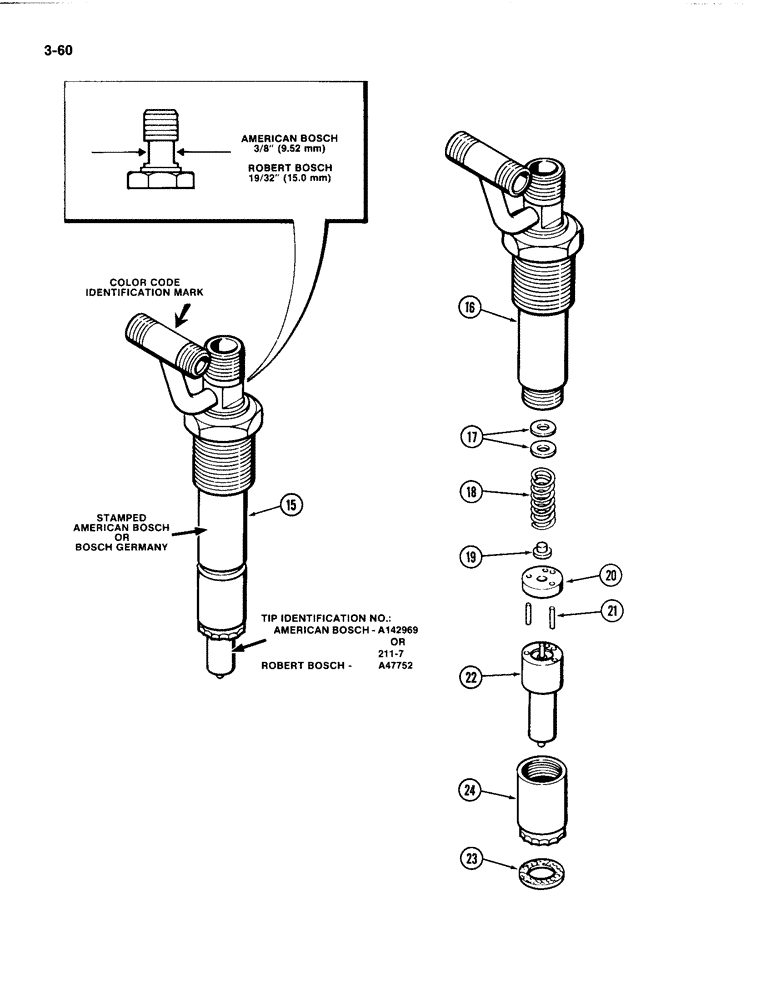

Запчасти Case IH 4494 (3-060) - FUEL INJECTOR NOZZLE 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A156327
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection (See Figure 3-58), Includes: Ref. 15 - 24 and 1 - 11 on fig. 3-58
6шт.
A156327R
REMAN-INJECT NOZZLE
4494 (1/83-12/87)
6шт.
A156327C
CORE-NOZZLE, INJECT
Return number
1шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, Robert Bosch No. 0-432 131- 884 (Order A156327)
1шт.
American Bosch and Robert Bosch injector nozzle components are not interchangeable.
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156327)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit required to repair six nozzles)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.00 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.04 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.08 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.10 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.14 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.18 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.20 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.24 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.28 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.30 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.34 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.38 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.40 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.44 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.48 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.50 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.54 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.58 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.60 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.64 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.68 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.70 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.74 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.78 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.80 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.84 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.88 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.90 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.94 mm
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 5 in kit, 1.98 mm
1шт.
18
NSS
NOT SOLD SEPARAT
SPRING - nozzle pressure
1шт.
19
NSS
NOT SOLD SEPARAT
SEAT - nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
1шт.
22
A47752
NOZZLE INJECTION
TIP ASSEMBLY - nozzle injector
1шт.
23
A76640
GASKET
- nozzle
1шт.
Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
