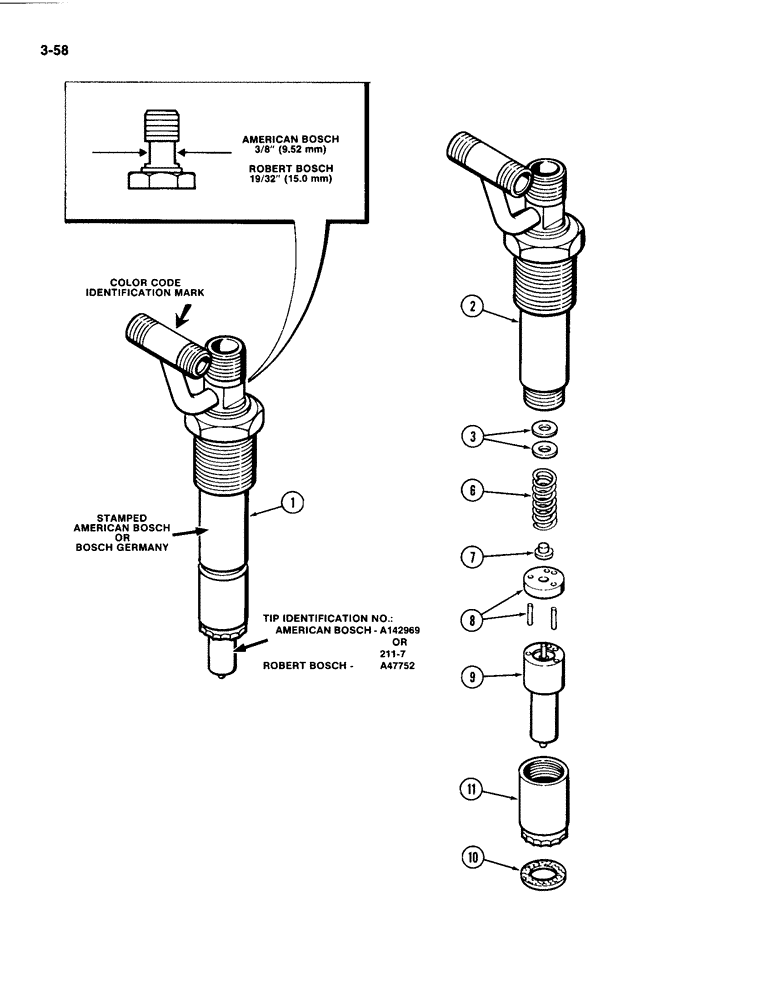

Запчасти Case IH 4494 (3-058) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE INDENTIFICATION (03) - FUEL SYSTEM

1

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection (See Figure 3-60), Includes: Ref. 1 - 11 and 15 - 24 on fig. 3-60

6шт.

A156327R

REMAN-INJECT NOZZLE

4494 (1/83-12/87)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Order A156327), Includes: Ref. 2 and 3

1шт.

American Bosch and Robert Bosch injector nozzle compo- nents are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062 inch (1.57 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002 inch (0.05 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007 inch (0.18 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.010 inch (0.25 mm)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025 inch (0.64 mm)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

1342829C1

GASKET

- nozzle; Replaces A76640

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
