Запчасти Case IH 4494 (3-056) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

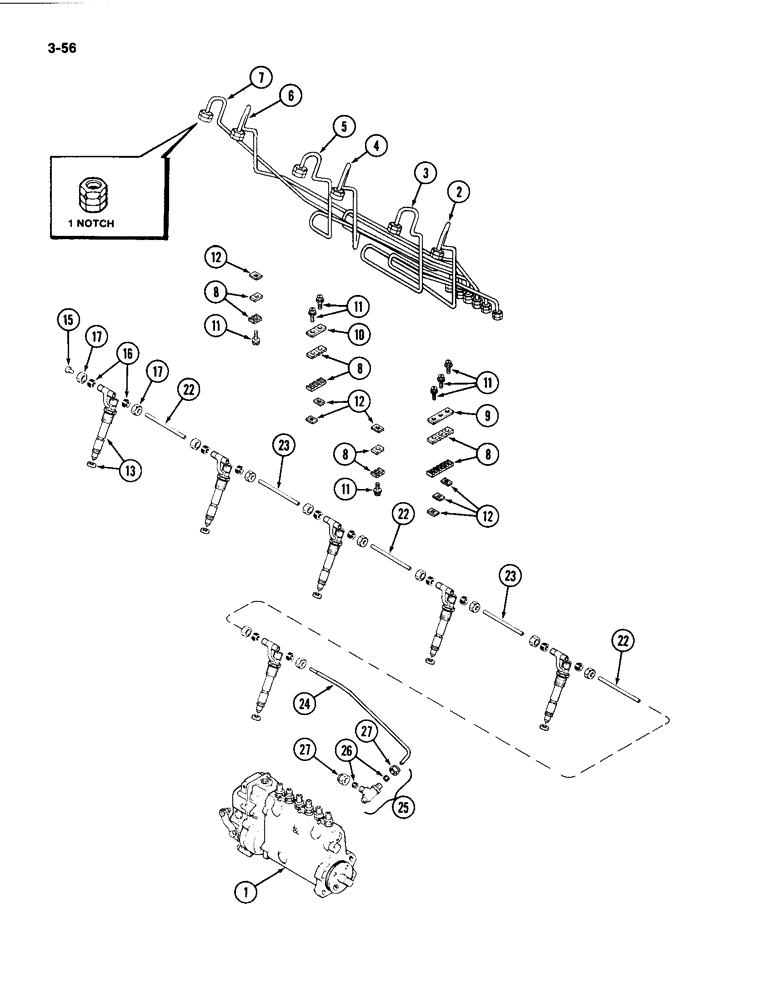

Схема запчастей Case IH 4494 - (3-056) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
1
9
27
3
8
23
22
7
27
17
24
11
4
8
8
11
17
12
12
6
8
23
22
25
16
11
12
10
22
2
11
13
26
15
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-52)

1шт.

2

A156885

TUBE

- fuel injection, No. 1 cylinder

1шт.

3

A156886

TUBE

- fuel injection, No. 2 cylinder

1шт.

4

A156887

TUBE

- fuel injection, No. 3 cylinder

1шт.

5

A156888

TUBE

- fuel injection, No. 4 cylinder

1шт.

6

A156889

TUBE

- fuel injection, No. 5 cylinder

1шт.

7

A156890

PIPE

TUBE - fuel injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- bracket mounting (6 tubes)

1шт.

10

A58710

PLATE

- bracket mounting (4 tubes)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex slotted, No. 10-24 x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - Tinnerman, speed No. 10-24

7шт.

13

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figure 3-58)

6шт.

15

47-37

RIVET,FH, 3/16" x 7/16"

- plug, flat head, 3/16 x 7/16 inch

1шт.

16

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube (5 mm)

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - 3/16 inch tube (5 mm)

12шт.

22

A76642

TUBE

- leak-off, 4-11/16 inch (119 mm) long

3шт.

23

A76641

TUBE

- leak-off, 5-3/4 inch (127 mm) long

2шт.

24

A153816

TUBE

- leak-off, no. 1, Serial Range: nozzle-valve

1шт.

25

A59097

VALVE

ASSEMBLY - check, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - 1/4 inch tube (6 mm)

1шт.
