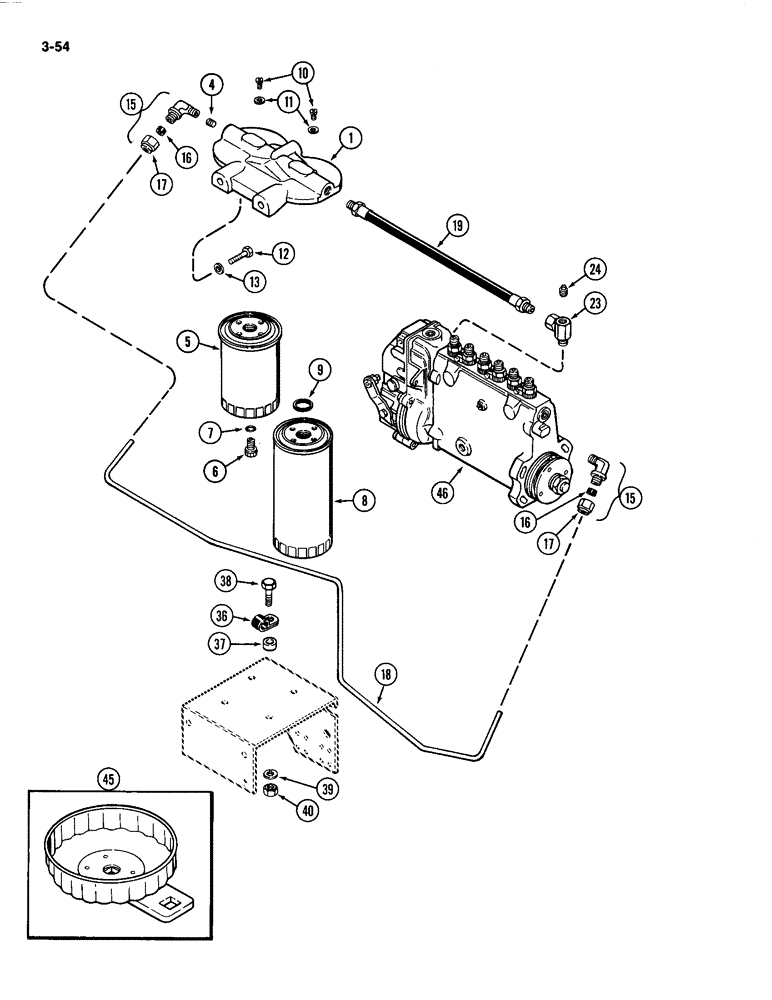

Запчасти Case IH 4494 (3-054) - FUEL FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A155489
HEAD
ASSEMBLY - filter mounting, Includes: Ref. 4
1шт.
4
222-1849
ELBOW,90 Degree, 17/32"-24 x 3/8" NPT, Comp
PLUG - socket, 1/8 inch PT
1шт.
A44068
FUEL FILTER
ELEMENT KIT - fuel filter, Includes: Ref. 5 - 9
1шт.
5
NSS
NOT SOLD SEPARAT
FILTER - first stage, Includes: Ref. 6 and 7
1шт.
6
G49080
PLUG
- plastic, 3/8 inch NC
1шт.
7
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Filter Plug
1шт.
8
NSS
NOT SOLD SEPARAT
FILTER - second stage, Includes: Ref. 9
1шт.
9
NSS
NOT SOLD SEPARAT
GASKET -, Serial Range: filter-head
1шт.
Whenever filter is removed, gasket must also be removed and replaced with a new gasket.
1шт.
10
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- bleed, filter head
2шт.
11
A146368
WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk
- bleed screw
2шт.
12
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
13
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
15
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSEMBLY - fuel line 90 degree, 5/16 tube x 1/4 inch PT, Includes: Ref. 15 and 16
2шт.
16
222-103
SLEEVE,5/16" Tube
(8 mm) 5/16" Tube
1шт.
17
222-113
TUBE NUT,9/16"-24
NUT - 5/16 inch tube (8 mm)
1шт.
18
A157329
TUBE
-, Serial Range: pump-filter
1шт.
19
A65564
HOSE,9.53mm ID x 390.65mm L, SAE 100R6
-, Serial Range: filter-pump
1шт.
23
A20539
FITTING
UNION -, Serial Range: hose-pump
1шт.
24
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - square head, 1/8 inch PT
1шт.
36
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
CLIP - tube, pump to filter
1шт.
37
A59660
SPACER
- clip
1шт.
38
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
(Grade 8) Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
39
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
40
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
45
REF
INSTRUCTION
TOOL - filter removal
1шт.
46
REF
INSTRUCTION
PUMP ASSEMBLY - fuel injection (See Figure 3-52)
1шт.
Выбрано товаров: 27
