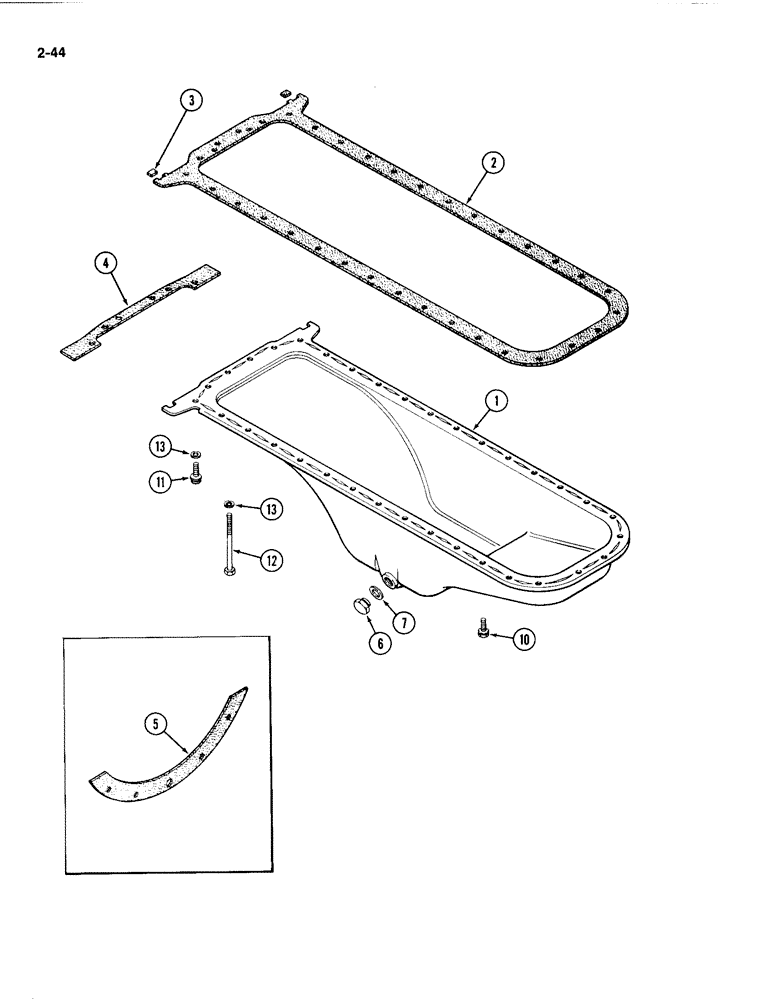

Запчасти Case IH 4494 (2-044) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148755

PAN, ENGINE OIL

PAN - oil

1шт.

A152479

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 2 - 7

1шт.

2

A150688

GASKET

-, Serial Range: pan-block

1шт.

A152424

GASKET

KIT - gasket (Used when tractor is split and oil pan not removed), Includes: Ref. 3 - 5

1шт.

3

A150690

OIL PAN GASKET SET

- corner tabs

2шт.

4

A150689

GASKET

- flywheel housing cover

1шт.

5

A57966

GASKET

- flywheel housing cover to clutch housing

1шт.

6

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

7

A27968

RING

- drain plug

1шт.

10

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex sems, 3/8 NC x 7/8 inch (Includes lock washer)

28шт.

11

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - ferry head, 3/8 NC x 1-1/4 inch (rear outside holes)

2шт.

12

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch (rear inside holes)

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
