(2-030) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE

Запчасти Case IH 4494 (2-030) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

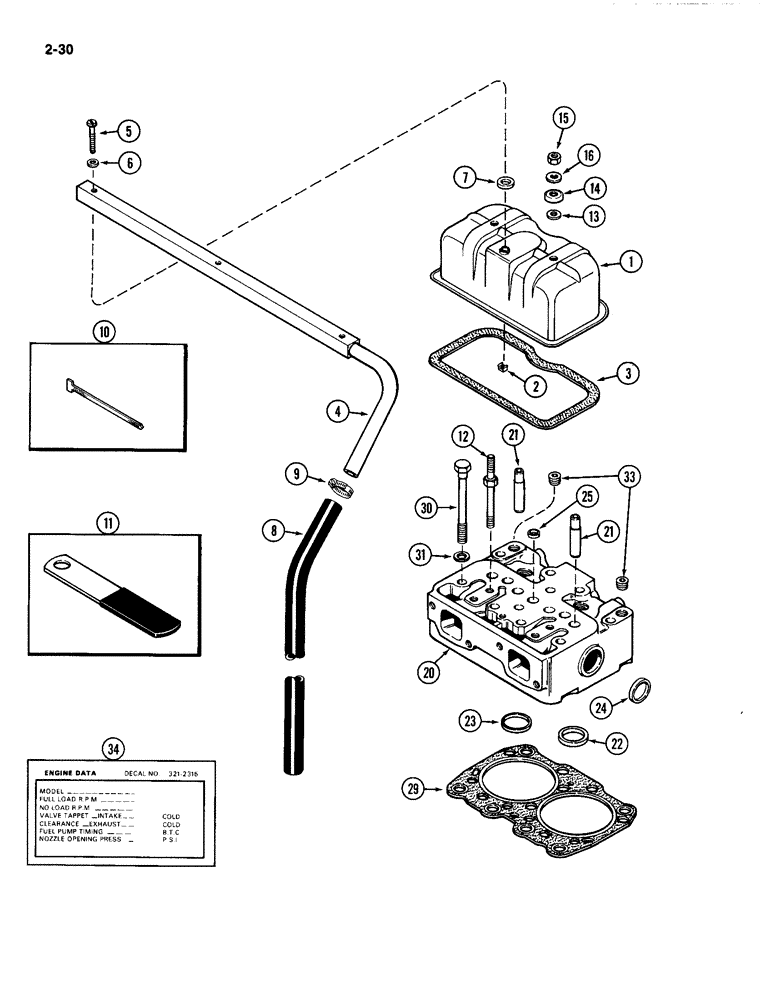

Схема запчастей Case IH 4494 - (2-030) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE
24
21
31
23
13
34
14
10
20
33
8
22
30
1
5
21
25
29
3
7
9
4
6
15
12
2
11
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, 1/4 inch NC Tinnerman

1шт.

3

REF

INSTRUCTION

GASKET - cylinder head (See Figure 2-46)

3шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

BOLT - hex, 1/4 NC x 2-1/3 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET -, Serial Range: bolt-tube

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 44 mm)

1шт.

10

A22883

CLIP

CLAMP - breather, Serial Range: hose-block

1шт.

12

A67121

STUD

STUD - cover and rocker arm bracket

6шт.

13

A142098

GROMMET

GROMMET - cover stud

6шт.

14

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover nut

6шт.

15

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

16

195-529

WASHER,7/16", SAE

WASHER - 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

6шт.

20

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A138337), Includes: Ref. 21 - 24

3шт.

20

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

21

A57448

GUIDE

GUIDE - valve

4шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A66191

INSERT

INSERT - intake valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch (41 mm)

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch (19 mm)

3шт.

29

REF

INSTRUCTION

GASKET - head to block (Includes fire rings) (See Figure 2-46)

3шт.

30

A76638

BOLT

BOLT -, Serial Range: head-block

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

30шт.

33

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, 3/8 inch PT

6шт.

34

321-5737

DECAL

DECAL - engine data

1шт.
