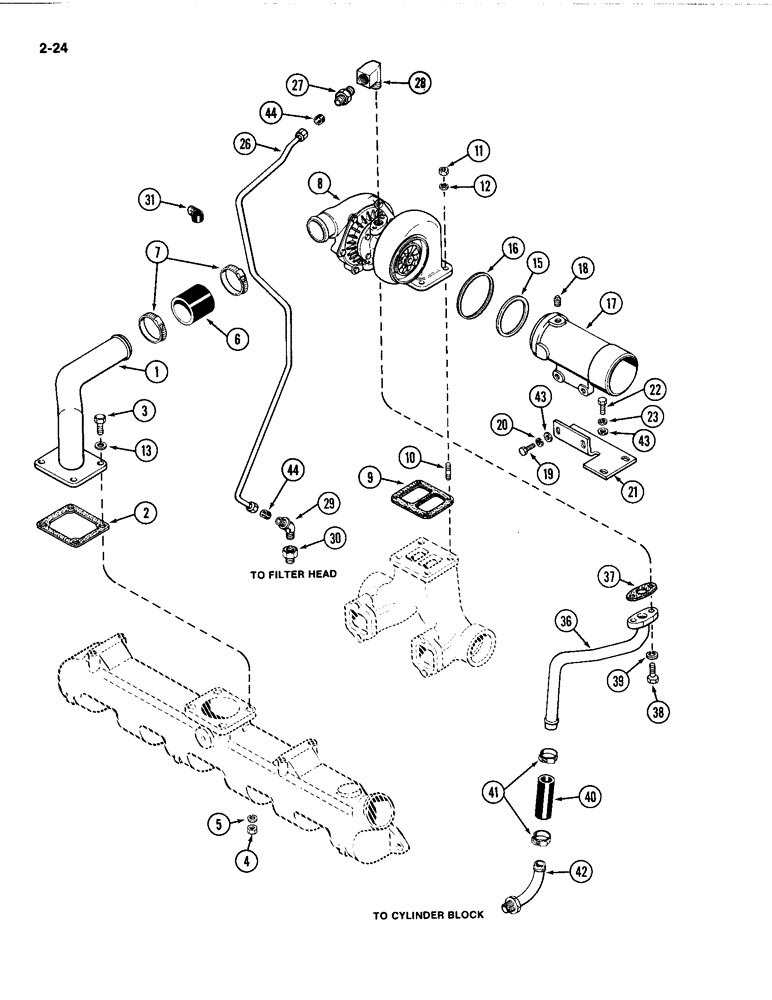

Запчасти Case IH 4494 (2-024) - TURBOCHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A150450

ELBOW

- air intake

1шт.

2

A58910

GASKET

- elbow flange

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 x 70 mm) #36, 1.81/2.75 Type F Worm

2шт.

9

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-26)

1шт.

9

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

10

G102128

BOLT

- turbocharger, 3/8 NC x 1-1/2 inch

4шт.

11

131-903

NUT,3/8"-16

NUT - hex seez pruf, 3/8 inch NC

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 7/64 inch (11 x 25 x 3 mm)

4шт.

15

A138817

RING,2.64mm Thk

- seal, turbocharger outlet

1шт.

16

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- outlet elbow

1шт.

17

A166231

EXHAUST SYSTEM PIPE

ELBOW - straight, exhaust outlet

1шт.

18

221-1811

PLUG - square head, 1/4 inch PT

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

A152391

BRACKET

- outlet elbow

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

26

A166064

TUBE

- oil supply, turbocharger

1шт.

27

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - turbocharger, 3/8 tube x 1/4 inch PT

1шт.

28

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT

1шт.

29

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- filter, 45 degree, 3/8 tube x 1/4 inch PT

1шт.

30

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8 PT x 1/4 inch PT

1шт.

31

49845

CLAMP

- oil supply tube

1шт.

36

A62518

TUBE

- oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

- tube flange

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

40

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 2-3/4 inch (46 x 70 mm)

2шт.

42

A58897

FITTING

- drain hose

1шт.

43

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

5шт.

44

222-154

SLEEVE,3/8" Tube

- supply tube

2шт.
