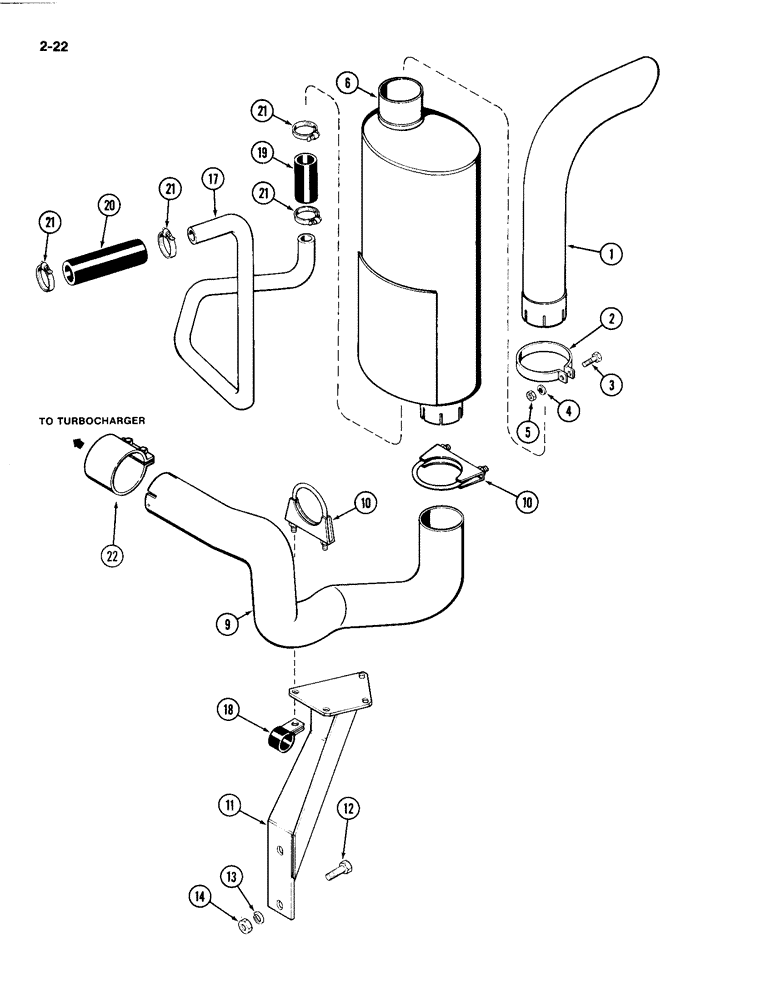

Запчасти Case IH 4494 (2-022) - MUFFLER AND ASPIRATOR, 504BDT DIESEL ENGINE (02) - ENGINE

1

A180204

TUBE

PIPE - exhaust, muffler (Replaces A147045)

1шт.

2

A162895

CLAMP

-, Serial Range: pipe-muffler

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

A162463

MUFFLER

- exhaust

1шт.

9

A180207

PIPE, EXHAUST SYSTEM

PIPE - exhaust, turbocharger to muffler (Replaces A149903)

1шт.

10

A162896

CLAMP

ASSEMBLY - pipe (Includes hardware)

3шт.

11

A149547

SUPPORT

- exhaust pipe

1шт.

12

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

17

A149566

TUBE

- aspirator

1шт.

18

49773

CLAMP

-, Serial Range: tube-support

1шт.

19

R43922

HOSE

- aspirator tube to muffler (Order R45924 and, Serial Range: cut-length)

1шт.

20

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Aspirator tube to pre-cleaner 1.50" ID

1шт.

21

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, 1-9/16 to 2-1/2 inch (40 x 64 mm)

4шт.

22

A149249

ASSEMBLY

CLAMP - muffler pipe

1шт.
