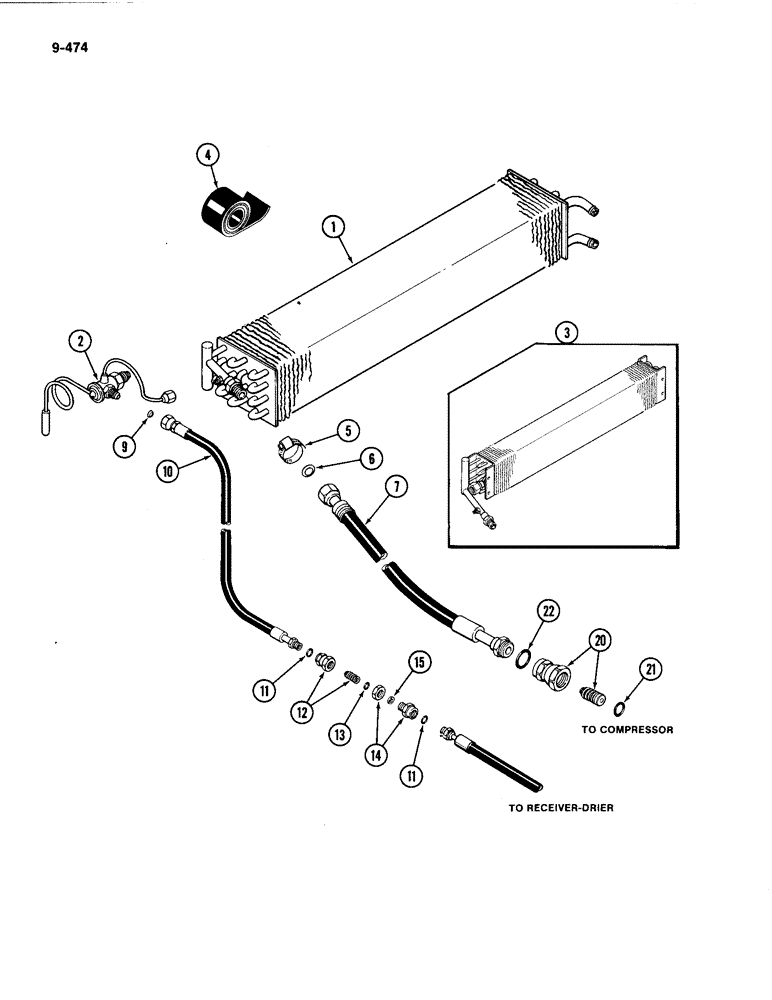

Запчасти Case IH 4494 (9-474) - CAB, AIR CONDITIONING VALVE AND HOSES (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE - heater and air conditioner

1шт.

Cab Serial No. 12112500 and after

1шт.

See Figure 9-490 and 9-492 for compressor and other components.

1шт.

2

F64389

VALVE

- expansion

1шт.

3

F63870

EVAPORATOR

- condenser

1шт.

Prior to Cab Serial No. 12112500

1шт.

4

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 mm)

1шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4 inch (30 x 44 mm)

1шт.

6

222-996

GASKET,3/4 Tube, Fl, Copper

- copper flare, 3/4 inch (19 mm) tube

1шт.

7

F64534

HOSE

ASSEMBLY, Serial Range: --compressor

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

(10 mm) 3/8 Tube, Fl, Copper

1шт.

10

F64535

HOSE

ASSEMBLY - to receiver, Serial Range: --receiver-drier

1шт.

11

A61195

O-RING,0.364" ID x 0.5" OD

- coupling, 23/64 inch ID (9 mm ID)

2шт.

12

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - receiver-drier hose, cab, Includes: Ref. 13

1шт.

13

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- piston, 1/4 inch ID (6 mm ID)

1шт.

14

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hose, tractor, Includes: Ref. 15

1шт.

15

A42667

GASKET

- coupling

1шт.

20

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - compressor hose, Includes: Ref. 21

1шт.

See Figure 9-490 and 9-492 for compressor and other components.

1шт.

21

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

- piston, 3/4 inch ID (19 mm ID)

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling, 1-13/64 inch ID (31 mm ID)

1шт.
