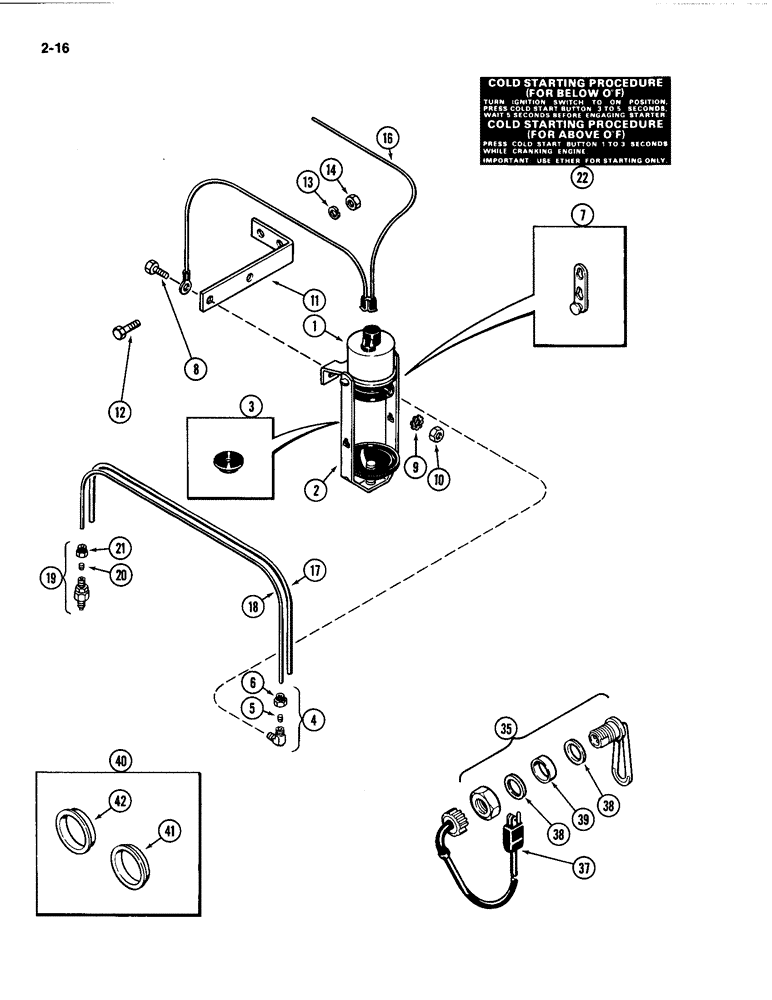

Запчасти Case IH 4494 (2-016) - ETHER COLD START 504BDT DIESEL ENGINE (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 - 6

1шт.

2

D77648

BAIL

HANGER - ether can

1шт.

3

R30786

GASKET

- can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, 1/8 tube, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

(3 mm) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube (3 mm) 5/16"-24, 45º Fl, Comp

1шт.

7

R30812

LINK

- hanger extension

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

A146674

BRACKET

SUPPORT - solenoid

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

REF

INSTRUCTION

HARNESS - engine (See Figure 4-71)

1шт.

17

A165310

TUBE

- outer, 1/4 inch O.D. x 7 inch (6 x 177 mm)

1шт.

18

A138483

TUBE

- plastice, solenoid to injector, 1/8 inch O.D. x 9 inch (3 mm x 229 mm) (also Order two of Ref. 20)

1шт.

19

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - nozzle, Includes: Ref. 20 and 21

1шт.

20

222-650

SLEEVE,1/8" Tube, Comp

(3 mm) 1/8" Tube, Comp

1шт.

21

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube (3 mm) 5/16"-24, 45º Fl, Comp

1шт.

22

321-2946

DECAL

- instruction, Includes: Ref. 35 - 39

1шт.

35

A182069

ELEMENT

HEATER KIT - engine coolant (Replaces A155436), cylinder block (W/O Cord)

1шт.

Ref #35A - A182017 Heater for U.S.A.

1шт.

Ref #35B - A182020 Heater for Canada

1шт.

37

A44813

CABLE EXTENSION

CORD - 12 inch (305 mm), cylinder block

1шт.

Ref #37 - The A44813 is not included with the Heater Kits (Ref #35)

1шт.

38

A45114

GASKET

- element, cylinder block

1шт.

39

A155433

SPACER

- heater, cylinder block

1шт.

40

A44006

SLEEVE

KIT - heater installation, cylinder block, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch (52 mm) diameter hole, cylinder block

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/18 inch (54 mm) diameter hole, cylinder block

1шт.
