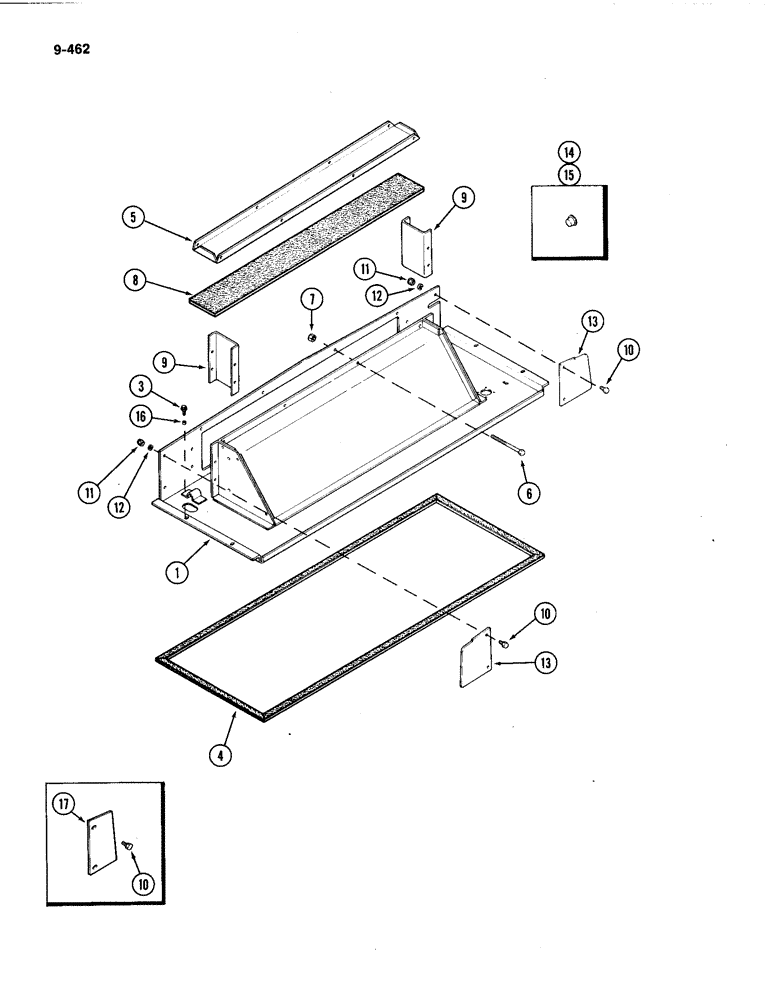

Запчасти Case IH 4494 (9-462) - CAB, PLENUM, PRIOR TO CAB SERIAL NO. 12112500 (09) - CHASSIS/ATTACHMENTS

1

F98278

TUBE

CHANNEL - air passage

1шт.

3

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - washer head self tapping, No. 10-16 x 1/2 inch

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - duct floor, 111-1/2 inch (2 832 mm) long (Order F64119)

2шт.

F64119

SEALING STRIP

- seal, 100 foot (30 m) roll, Serial Range: (cut-length)

1шт.

5

F63841

COVER

- top, air passage

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

8шт.

8

F63671

SEAL

- top cover

1шт.

10

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex, 1/4 NC x 3/4 inch

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

F63614

PLATE ASSY.

PLATE - end, air passage

2шт.

14

353-3

PLUG,Cap, .302" OD

- plastic, for 7/32 inch (6 mm) hole

1шт.

15

353-14

PLUG,Cap, .787" OD

- plastic, for 3/4 inch (19 mm) hole

1шт.

16

F44834

BUSHING

- plenum channel

4шт.

17

A177983

PLATE - end, air passage (Not North America)

1шт.
