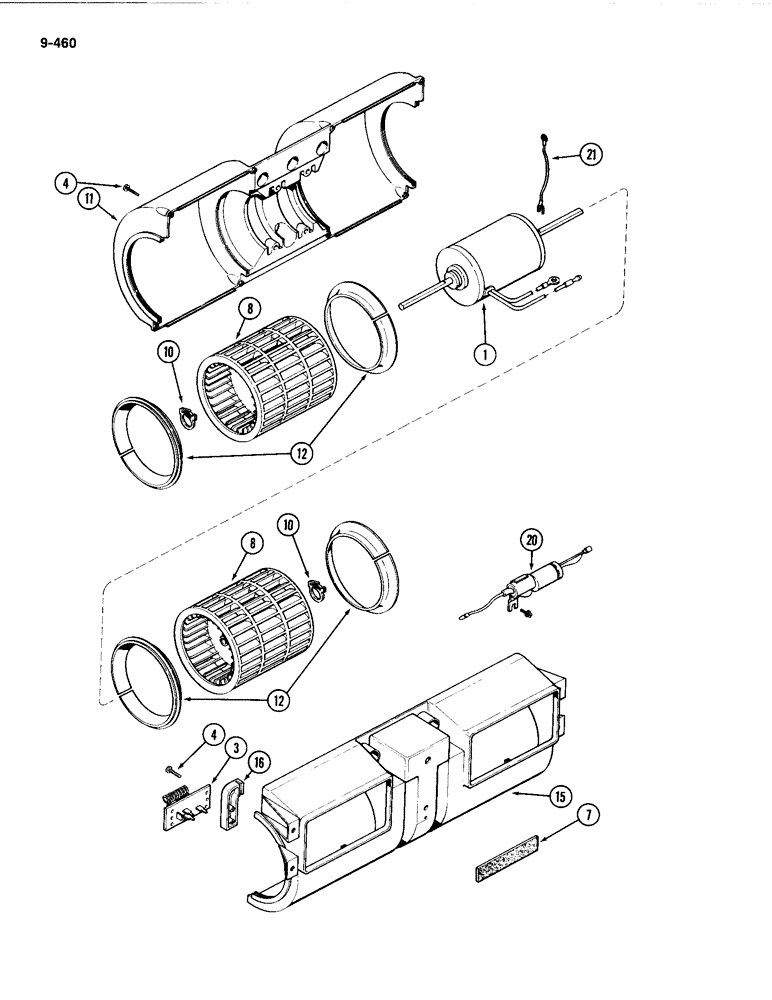

Запчасти Case IH 4494 (9-460) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab air, Includes: Ref. 1 - 16

1шт.

1

F96901

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

F44900

RESISTOR

- blower

1шт.

4

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, No. 8-32 x 3/4 inch

14шт.

7

F64816

FOAM

- sealing (Order F64119)

1шт.

8

F64935

BLOWER,Fan

FAN - blower (Replaces F45020 and F45021)

2шт.

10

F64815

CLAMP

- fan retaining

2шт.

11

F64741

HOUSING

- blower

1шт.

12

F64739

RING

- venturi

4шт.

15

F64740

HOUSING

BASE - mounting

1шт.

16

F66204

BRACKET

- resistor (Replaces F64742)

1шт.

20

F64184

CAPACITOR

- radio noise (If equipped)

1шт.

21

A180121

ELECTRICAL WIRE

WIRE - ground

1шт.
