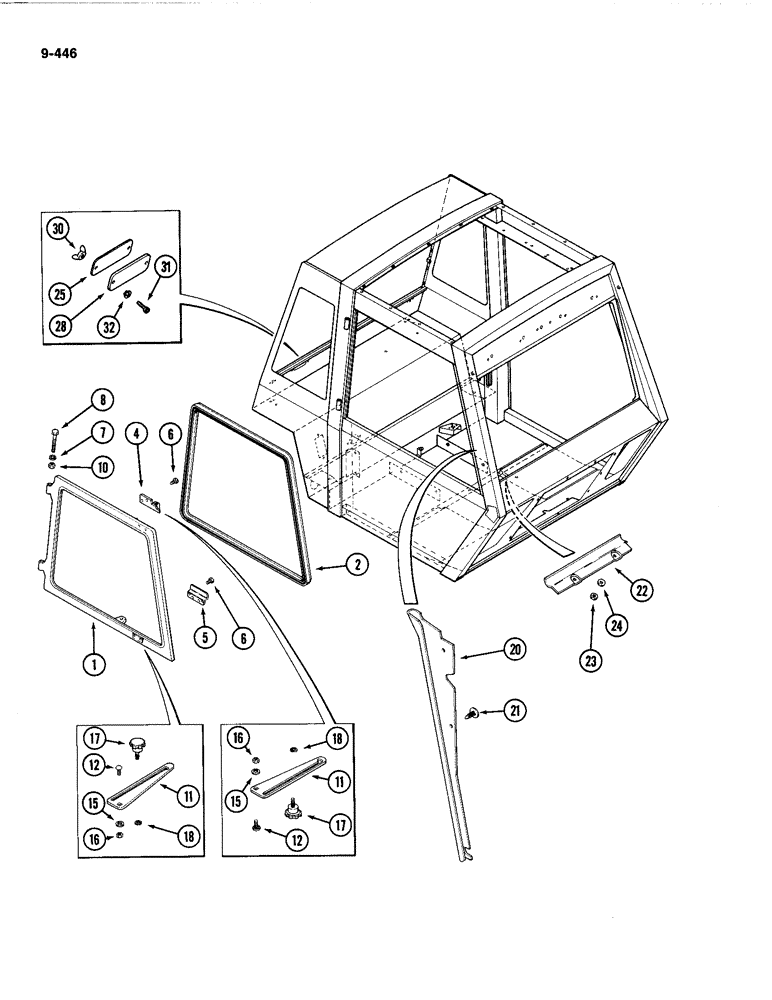

Запчасти Case IH 4494 (9-446) - CAB, SIDE WINDOW AND COVERS (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

WINDOW ASSEMBLY - right (Includes glass), Includes: Ref. 1 - 6

1шт.

1

F64675

FRAME

- window, side

1шт.

2

F64571

SEAL

SEAL - window

1шт.

4

F64513

BRACKET

- regulator, upper

1шт.

5

F64533

HANDLE

- window

1шт.

6

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex slotted, No. 10 x 1/2 inch

6шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, pivot

2шт.

8

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch

2шт.

11

F64779

REGULATOR

- window

2шт.

12

111-243

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

17

F64253

KNOB

- fluted

2шт.

15

195-130

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

6шт.

16

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

18

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

20

F64614

COVER ASSY

COVER - harness

1шт.

21

R53048

CLIP

PIN - speed (Replaces F64646)

2шт.

Order Glass And Trim From Figure 9-450

1шт.

22

F64724

COVER ASSY

COVER - harness

1шт.

23

129-119

NUT,1/4"-20, G5

2шт.

24

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

25

F64902

PLATE

- access

1шт.

28

F64903

SEAL

- plate

1шт.

30

129-588

NUT

- wing , No. 10-24

2шт.

31

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- phillips slotted, No. 10-24

2шт.

32

A165523

FASTENER

- speed, push on

2шт.
