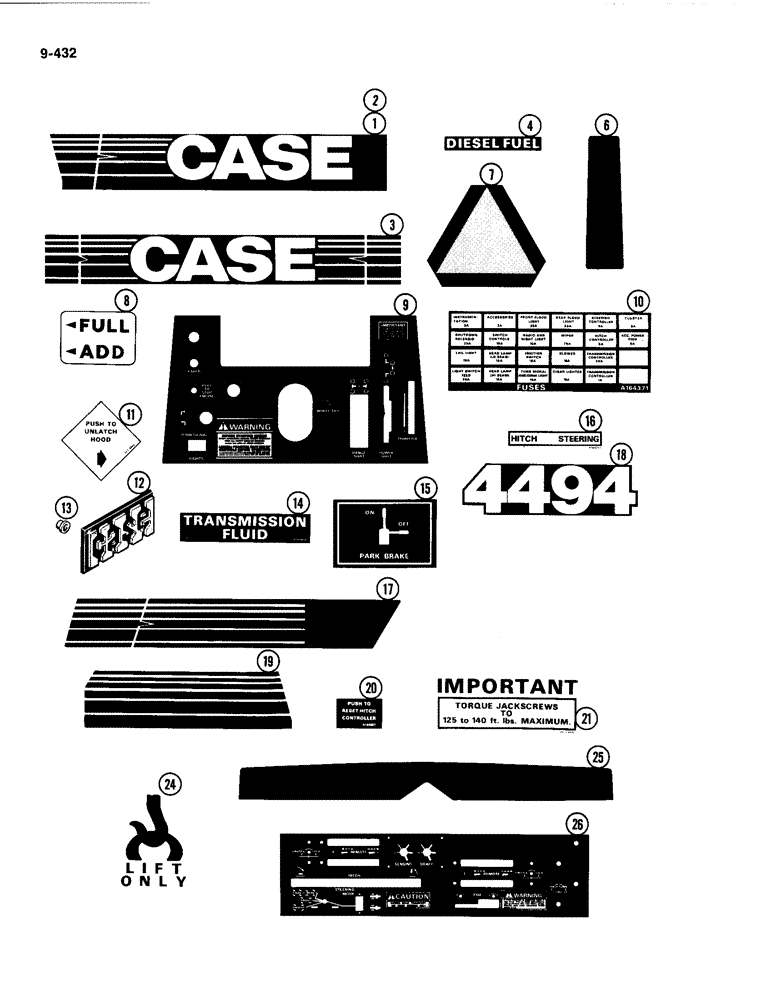

Запчасти Case IH 4494 (9-432) - TRACTOR DECALS, CASE (09) - CHASSIS/ATTACHMENTS

A67596

DECAL

KIT - tractor, Includes: Ref. 1 - 17

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

1

A169044

DECAL

- right hood side

1шт.

A169043

DECAL

- left hood side (Right shown)

1шт.

3

A169061

DECAL

- cab rear

1шт.

4

321-2601

DECAL

- diesel fuel (fuel tank filler)

1шт.

6

321-4142

DECAL

- hood sight

1шт.

7

321-4311

DECAL

- SMV

1шт.

8

321-2470

DECAL

- transmission oil level

1шт.

9

A176024

DECAL

- instrument panel

1шт.

10

A177334

DECAL

- fuse location (Replaces A164371)

1шт.

11

321-3985

DECAL

- hood latch unlock (Order A167284)

1шт.

12

321-4739

EMBLEM

MEDALLION - front grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self threading, 1/4 inch

2шт.

14

A169070

DECAL

- transmission fluid (on transmission fill tube)

1шт.

15

A167688

DECAL

- parking brake (on parking brake switch cover)

1шт.

16

A164212

DECAL

- hitch and steering (on console support bracket)

1шт.

17

A169056

DECAL

- cab, right

1шт.

17

A169057

DECAL

- cab, left (Right shown)

1шт.

18

A169053

DECAL

- 4494 (side of cab)

2шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

19

A169048

DECAL

- rear hood, right side

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

19

A169047

DECAL

- rear hood, left side (Right shown)

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

20

A164557

DECAL

- hitch reset (on console)

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

21

321-6432

DECAL

- power adjust jackscrew (Row crop tires only)

8шт.

24

321-3578

DECAL

- lifting eye (Export only)

4шт.

25

321-6446

DECAL

- cab roof, front

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

26

A176079

DECAL

- operator console

1шт.

For complete tractor, order 1-A67596 tractor kit and 1-A67597 safety kit, and decals for Refs. 1, 18, 19, 20, 25 and 26.

1шт.

A46559

DECAL

KIT - French language, Includes: Ref. 4 and 10

1шт.

Kit also includes Refs. on figure 9-436

1шт.

4

321-5793

DECAL

- diesel fuel only, French Language

1шт.

10

A169080

DECAL

- fuse block location. French Language

1шт.

10

A169079

DECAL

- fuse block location (Not used this application), French Language

1шт.

321-5536

DECAL

- road speed (Not used this application), French Language

1шт.
