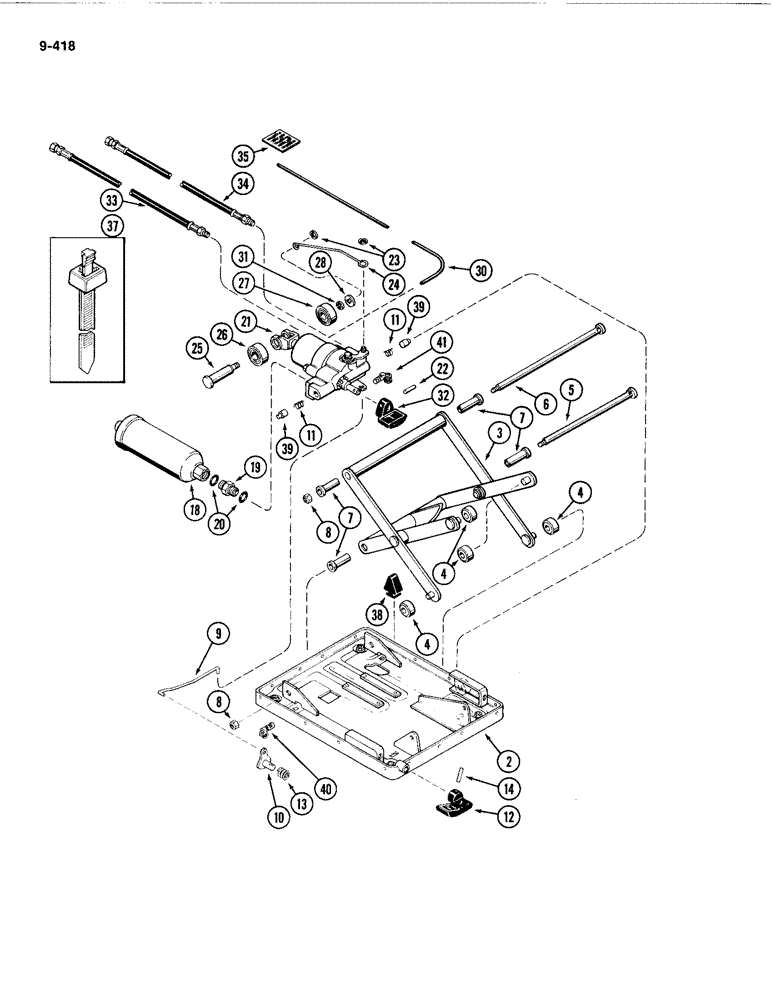

Запчасти Case IH 4494 (9-418) - SEAT, AIR/OIL SUSPENSION, PRIOR TO P.I.N. 8866221 (09) - CHASSIS/ATTACHMENTS

A176376

SEAT

ASSEMBLY - air/oil suspension (Continued from 9-416), Includes: Ref. 2 - 41

1шт.

2

A49524

HOUSING

ASSEMBLY - lower suspension

1шт.

3

A49526

ARM

ASSEMBLY - suspension

1шт.

4

A49527

ROLLER

- suspension

4шт.

5

A49528

SHAFT

- torque tube

1шт.

6

A49529

SHAFT

- bearing tube

1шт.

7

A47760

BUSHING

TUBE - bearing

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

9

A49532

CABLE

CONTROL WIRE - suspension

1шт.

10

A49535

LEVER

CONTROL ASSEMBLY - height adjust

1шт.

11

A49537

SPRING

- control

2шт.

12

A49536

HANDLE

- height adjust

1шт.

13

A49538

SPRING

- control

1шт.

14

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

NLS

NO LONGER SERVICED

MODULE ASSEMBLY - final hydraulic, Includes: Ref. 18 - 35

1шт.

18

A49617

ACCUMULATOR

- module

1шт.

19

A49620

FITTING

CONNECTOR ASSEMBLY - straight, Includes: Ref. 20

1шт.

21

A49610

CYLINDER

ASSEMBLY - module (See Figure 9-420)

1шт.

22

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

23

A49623

RING, SNAP

RING - retaining

2шт.

24

A49615

ROD

- valve linkage

1шт.

25

A49613

SHAFT

- cam roller

1шт.

26

A49614

ROLLER BEARING,17 mm ID x 44.48 mm OD x 12 mm

BEARING - roller

2шт.

27

A49616

NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W

BEARING - cam follower

1шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

30

A49609

HOSE,0.38" ID x 39.00"

- Drain (Order A167912 and Cut to Desired Length)

1шт.

31

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 25/64 x 5/8 x 1/16 inch (10 x 16 x 2 mm)

1шт.

32

A49550

KNOB

- damper valve

1шт.

33

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Seat pressure (See Figure 8-290)

1шт.

34

A176632

HOSE ASSY.

HOSE - seat return (See Figure 8-290)

1шт.

35

A49621

DECAL

- supply

1шт.

37

R38237

STRAP

- hose retaining

1шт.

38

A49530

INSULATOR BLOCK

BUMPER - suspension

2шт.

39

A49531

PIN

- trunnion

2шт.

40

A49533

HOSE

CLIP - left retaining

1шт.

41

A49534

CLIP

- right retaining

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 21/32 ID x 5/64 inch width (16 ID x 2 mm width)

2шт.
