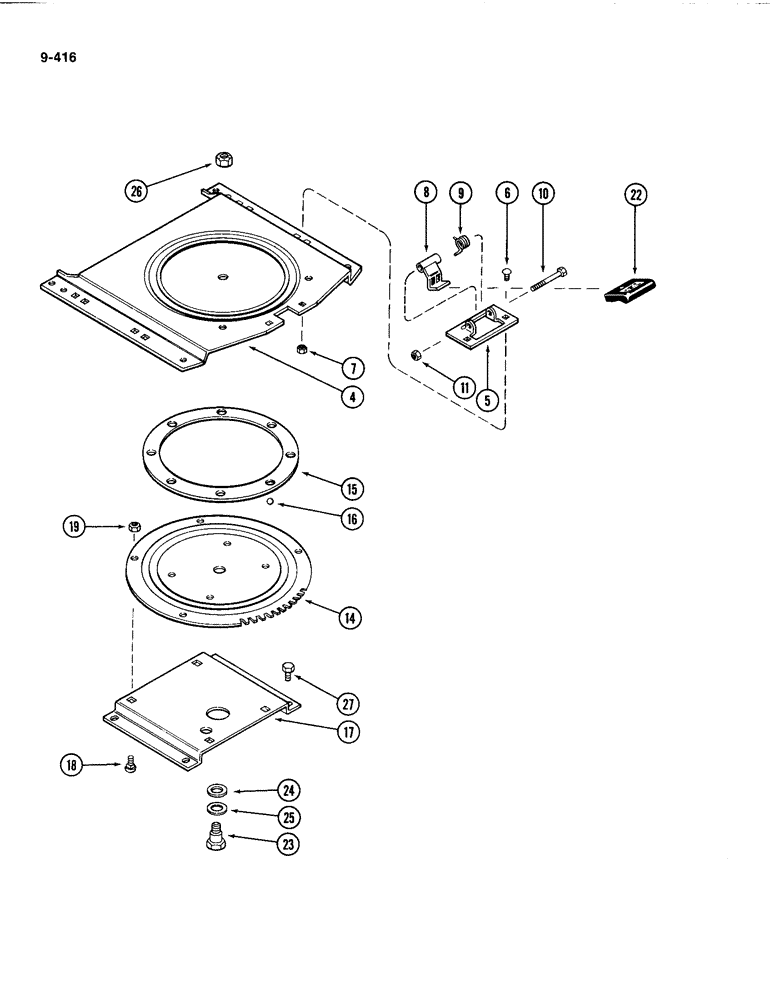

Запчасти Case IH 4494 (9-416) - SEAT, AIR/OIL SUSPENSION, PRIOR TO P.I.N. 8866221 (09) - CHASSIS/ATTACHMENTS

A176376

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 4 - 27 and isolator and swivel assemblies

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat, Includes: Ref. 4 - 27 and swivel assembly

1шт.

A49822

PLATE

SWIVEL ASSEMBLY - seat (Replaces A49608), Includes: Ref. 4 - 7

1шт.

4

A49551

PLATE

- swivel top

1шт.

5

A49552

BRACKET

- swivel latch

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A49553

LATCH

ASSEMBLY - swivel, Includes: Ref. 8 - 27

1шт.

9

A49554

SPRING

- latch

1шт.

10

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

14

A49556

PLATE

- latch

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

16

211-315

BALL,1/2" Dia

- 1/2 inch diameter (13 mm)

8шт.

17

A49557

PLATE

- swivel mounting

1шт.

18

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

22

A49612

LEVER ASSY & KNOB

KNOB - swivel latch

1шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

1шт.

27

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.
