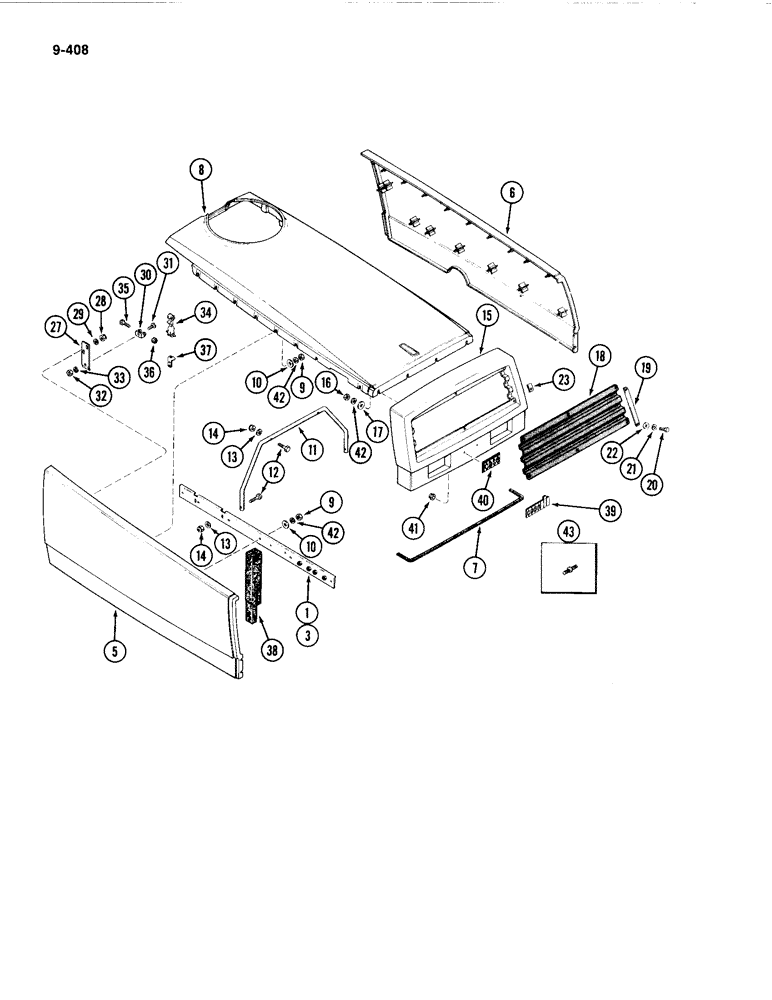

Запчасти Case IH 4494 (9-408) - HOOD AND UPPER GRILLE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ANGLE - right hood and panel support (See Figure 9-406)

1шт.

3

REF

INSTRUCTION

ANGLE - left hood and panel support (Right shown)

1шт.

5

A167276

PANEL

- hood, right side, with decal (Includes Ref. 43) (White)

1шт.

5

A181478

PANEL

- right side with decal (Includes Ref. 43) (Red)

1шт.

6

A167275

PANEL, SIDE

PANEL - hood, left side, with decal (Includes Ref. 43) (White)

1шт.

6

A181479

PANEL

- left side with decal (Includes Ref. 43) (Red)

1шт.

7

A149860

SEAL PROTECTION

- panel (Order A166634)

1шт.

8

A152804

PANEL

- hood top (White)

1шт.

8

A181482

COWL

PANEL - hood top (Red)

1шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

28шт.

10

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

28шт.

11

A151635

SUPPORT

- center

1шт.

12

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

13

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

4шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A152805

GUARD

GRILLE - upper (Includes Ref. 43) (White)

1шт.

15

A181477

GRILLE

- upper (Includes Ref. 43) (Red)

1шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

17

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

8шт.

18

A162563

SIEVE

SCREEN - grille

1шт.

19

A149604

RETAINER

- screen

2шт.

20

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

21

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

22

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

6шт.

23

131-603

NUT,Tinn, U, 1/4"-20

- Tinnerman U-type, 1/4 inch

6шт.

27

A160964

PLATE

- right latch hook

1шт.

27

A160944

PLATE

- left latch hook (Right shown)

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

29

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

4шт.

30

L47159

BRACKET

- hook

2шт.

31

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- pan head, 5/16 NC x 5/8 inch

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

34

L47157

HOOK

- hood latch

2шт.

35

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

36

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch

2шт.

37

L47158

BRACKET

KEEPER - hood latch hook

2шт.

38

A160474

SEAL

- foam, Serial Range: hood-radiator

2шт.

39

A181900

EMBLEM

MEDALLION - front (Case IH logo)

1шт.

40

321-4739

EMBLEM

MEDALLION - front (Case logo)

1шт.

41

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self thread, 1/4 inch

2шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

36шт.

43

A160247

STUD

- mounting

1шт.
