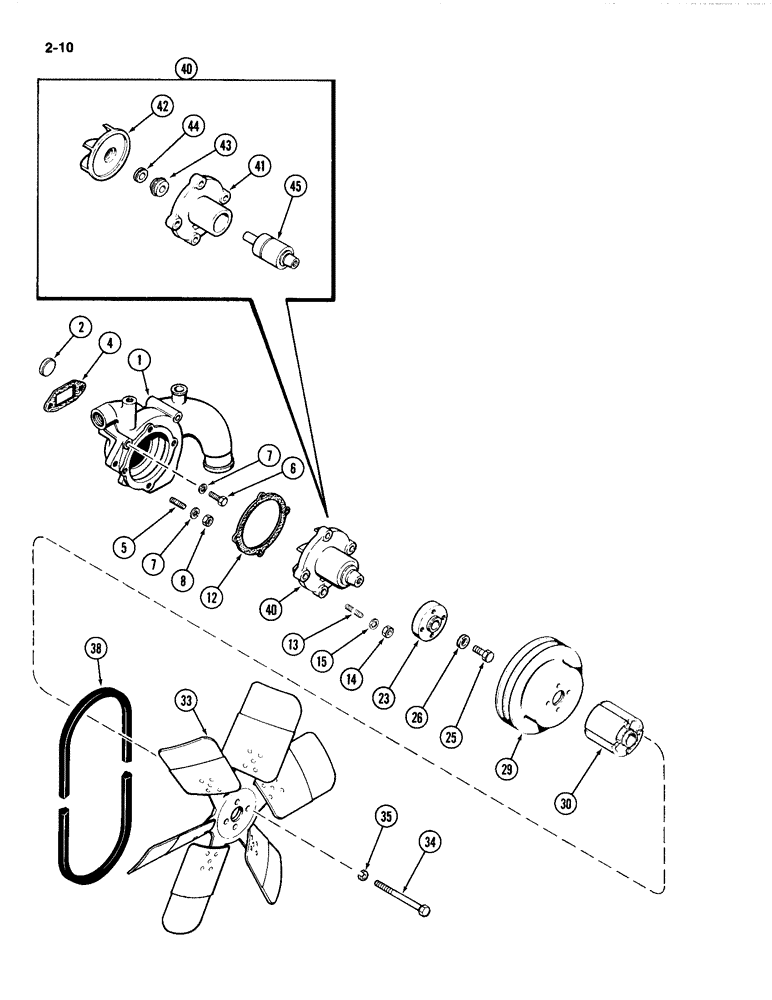

Запчасти Case IH 4494 (2-010) - WATER PUMP AND FAN, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A60630
HOUSING
BODY ASSEMBLY - water pump, Includes: Ref. 2
1шт.
2
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - cup type, 1-3/8 inch (35 mm)
1шт.
4
A58649
GASKET
GASKET -, Serial Range: body-block
1шт.
5
G102128
BOLT
STUD - body to block, 3/8 NC x 1-1/2 inch
2шт.
6
113-267
BOLT,Hex, 3/8" - 16 x 4", Gr 5
BOLT - hex, 3/8 NC x 1-1/4 inch
2шт.
7
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
8
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
12
A58646
GASKET
GASKET -, Serial Range: pump-body
1шт.
13
A166044
STUD
STUD - pump to body, 3/8 NC x 1-7/16 inch
4шт.
14
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
15
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
23
A146221
HUB
HUB - fan and pulley
1шт.
25
114-400
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
BOLT, Hex, 1/2"-20 x 1 1/4", G5, Full Thd
1шт.
26
A155057
WASHER - hub retainer
1шт.
29
A146982
PULLEY
PULLEY - belt
1шт.
30
A161679
BUSHING
SPACER - fan, 3-7/8 inch (98 mm)
1шт.
33
A164663
FAN
FAN - 22 inch (559 mm)
1шт.
34
113-253
BOLT,Hex, 3/8" - 16 x 5", Gr 5
BOLT, Hex, 3/8"-16 x 5", G5
4шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
38
A61048
SET OF BELTS,0.69" W x 58.00" L
Drive, Fan and pump (Set of 2)
1шт.
A48369
PUMP
PUMP KIT - water, remanufactured (Includes Ref. 12)
1шт.
A48335
CORE-WATER PUMP
Return Part Number - use this part number to return pump core for credit
1шт.
40
A157145
PUMP, WATER
PUMP ASSEMBLY - water, new, Includes: Ref. 41 - 45
1шт.
40
1342818C1R
REMAN-WATER PUMP
Remanufactured Water Pump
1шт.
40
A48335
CORE-WATER PUMP
Return Part Number, Water Pump
1шт.
41
NSS
NOT SOLD SEPARAT
HOUSING - pump
1шт.
42
A62975
IMPELLER
IMPELLER - water, plastic (Order A152126, cast iron)
1шт.
43
A166281
SEAL
SEAL - pump shaft (Replaces A142499)
1шт.
44
A166280
SEAT
SEAT - impeller (Replaces A34000)
1шт.
45
A156995
BEARING
SHAFT ASSEMBLY - bearing
1шт.
Выбрано товаров: 30
