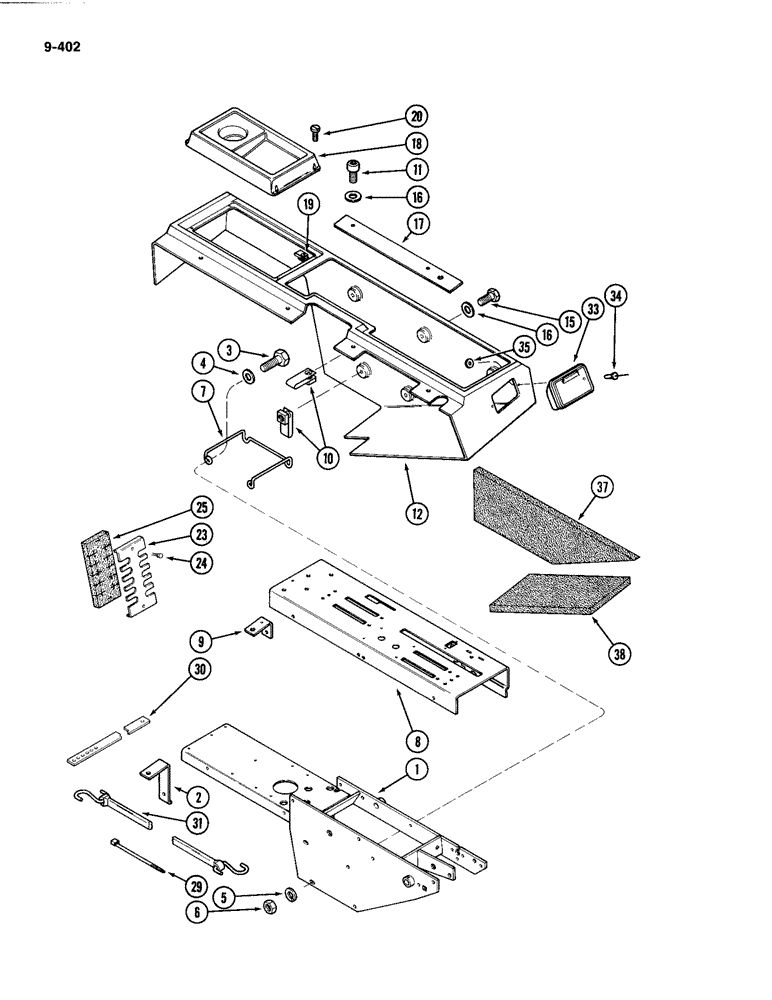

Запчасти Case IH 4494 (9-402) - OPERATORS CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A166928

CONSOLE

- control

1шт.

2

A169075

BRACKET

- lower mounting, cowl

1шт.

3

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch

4шт.

4

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

A167290

SUPPORT ASSY.

SUPPORT - lower console

1шт.

8

A181263

PANEL

COVER - top console, (Replaces A176033)

1шт.

For Decals, See Figure 9-432.

1шт.

9

A162593

BRACKET

- upper mounting, cowling

3шт.

10

131-97

SPRING NUT,Tinn, U, 5/16"-18

- Tinnerman u type, 5/16 inch

6шт.

11

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - hex head self tap 5/16 x 3/4

7шт.

12

A177868

COWL

- console (Replaces A169076)

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

16

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

8шт.

17

A162277

COVER

- access, hitch control

1шт.

18

A169068

COVER ASSY

COVER - access, steering control box

1шт.

19

131-855

NUT,Tinn, #6

- speed, Tinnerman J type

4шт.

20

187-1057

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - slotted pan head, No. 6 x 1/2 inch

2шт.

23

A151092

PLATE

- rear, cable guide

1шт.

24

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - hex head self tap, 1/4 x 1-1/2 inch

2шт.

25

A151093

FOAM

- sealing, cable entry

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, nylon

1шт.

30

A161222

STRAP

- cable tie down

1шт.

31

A147815

STRAP

ASSEMBLY - cable tie down

1шт.

33

A165449

ASH TRAY

TRAY - ash

1шт.

34

151-548

RIVET,Pop, 1/8" x .462"

- pop, 1/8 inch

2шт.

35

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 1/16 inch (4 x 10 x 2 mm)

2шт.

37

A180639

PAD

- console, side

1шт.

38

A180640

PAD

- console, bottom

1шт.
