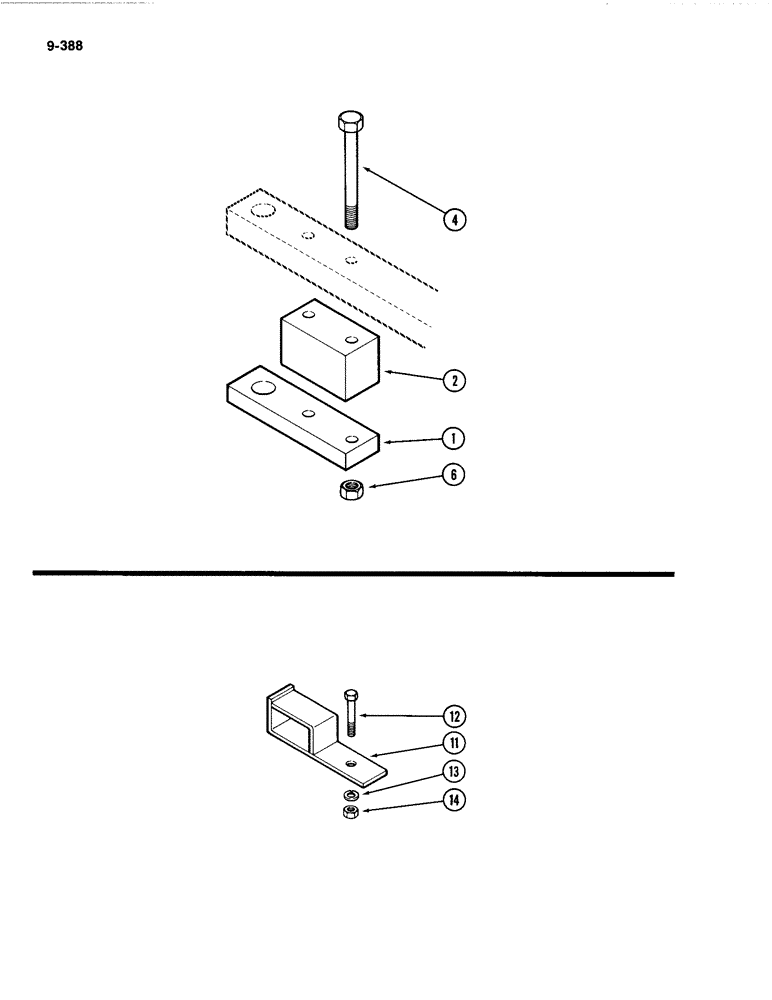

Запчасти Case IH 4494 (9-388) - DRAWBAR YOKE (09) - CHASSIS/ATTACHMENTS

1

A167102

YOKE

- drawbar

1шт.

2

A177722

SPACER

- yoke (Replaces A167101)

1шт.

4

26-12136

CAPSCREW,Hex, 3/4" - 10 x 8 1/2", Gr 8

BOLT - hex, 3/4 NC x 8-1/2 inch (Grade 8)

2шт.

6

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC (Grade 8)

2шт.

A169127

FOAM

SUPPORT ATTACHMENT - safety chain, implement (Machinery Item), Includes: Ref. 11 - 14

1шт.

11

A166390

RETAINER

SUPPORT - safety chain

1шт.

12

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Safety chain support Hex, 3/4"-10 x 3", G5

1шт.

13

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , Safety chain support 3/4"

1шт.

14

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4 inch NC, safety chain support

1шт.
