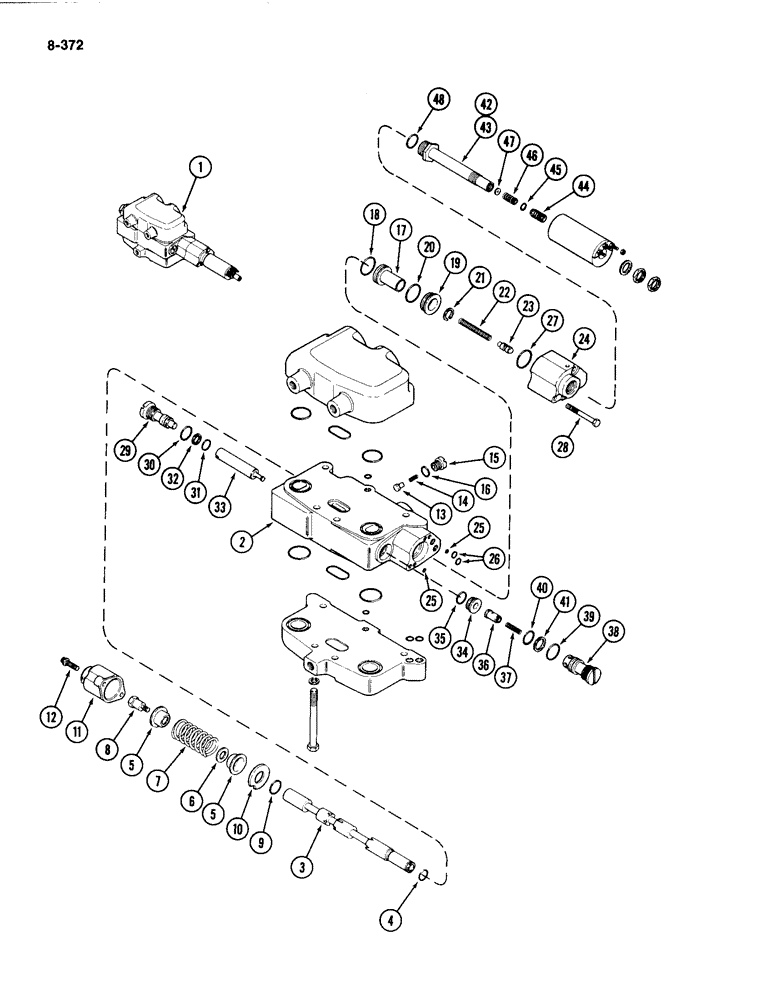

Запчасти Case IH 4494 (8-372) - HITCH CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

AR166847

REMAN-HYD VALVE

VALVE ASSEMBLY - hitch control, remanufactured, Includes: Ref. 2 - 48, and 49 - 60 on fig. 8-374

1шт.

AC166847

CORE-VALVE HYD

RETURN NUMBER - use this part number to return valve core for credit

1шт.

1

A166847

VALVE

ASSEMBLY - hitch control, new (Order A69674 kit, See Figure 8-370)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - three way valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- valve spool

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

5

A47963

WASHER

- spring seat

1шт.

6

F8235

WASHER

- spool screw

1шт.

7

A47975

SPRING

- spool

1шт.

8

H138248

SCREW,1/4" - 20 x 7/16"

- valve spool

1шт.

9

A47982

O-RING,0.489" ID x 0.629" OD

- valve spool

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

10

H205070

RETAINER

- o-ring

1шт.

11

A47964

CAP

- end, valve

1шт.

12

166-505

12 PT SCREW,Flg, 1/4" - 28 x 7/8", Gr 8

SCREW - 12 point head, 1/4 NF x 7/8 inch

2шт.

13

F36081

VALVE POPPET

PLUNGER - lift check

1шт.

14

673625R1

SPRING

- lift check (Replaces F36082)

1шт.

15

H229203

PLUG

ASSEMBLY - lift check, Includes: Ref. 16

1шт.

16

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- lift check plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

17

A47965

SLEEVE

ASSEMBLY - valve spool, Includes: Ref. 18

1шт.

18

A47966

SEAL

O-RING - spool sleeve

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

19

A47967

BUSHING

ASSEMBLY - spool sleeve, Includes: Ref. 20

1шт.

20

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- sleeve bushing

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

21

A47973

RING

- snap, spool retainer

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

22

A47974

SPRING

- valve spool

1шт.

23

A47968

SPOOL

- servo control

1шт.

24

A47969

CAP

- solenoid adapter

1шт.

25

363226R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- valve body (Replaces T30271)

2шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

26

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- valve body

2шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

27

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- valve body

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

28

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

29

A47970

PLUG

ASSEMBLY - lockout, Includes: Ref. 30 and 31

1шт.

30

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- lockout plug (Order K24852)

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

31

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- lockout plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

32

A47971

RING

- backup, lockout plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

33

NSS

NOT SOLD SEPARAT

PLUNGER - lockout

1шт.

34

A47977

SEAT

ASSEMBLY - poppet, Includes: Ref. 35

1шт.

35

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- poppet seat

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

36

A47962

VALVE POPPET

POPPET - lockout

1шт.

37

A47976

SPRING

- poppet (Light blue)

1шт.

38

A47978

PLUG

ASSEMBLY - lockout, Includes: Ref. 39 - 41

1шт.

39

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- lockout plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

40

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- lockout plug (Order K24852)

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

41

A41346

RING

- backup, lockout plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

42

A47957

CORE

ASSEMBLY - solenoid, Includes: Ref. 43 - 48

1шт.

43

NSS

NOT SOLD SEPARAT

CORE ASSEMBLY - sub, solenoid

1шт.

44

A47959

PLUG

- adjustment

1шт.

45

A47983

O-RING,2.38mm Thk x 18.82mm ID

- adjustment plug

1шт.

Part of Three Way Valve Repair Kit, P/N A47985

1шт.

46

A47961

SPRING

- solenoid

1шт.

47

A47960

WASHER

- solenoid core

1шт.

48

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- solenoid core

1шт.

A47985

SEAL

KIT - repair, three way valve, Includes: ref. nos. 4, 9, 16, 18, 20, 21, 25, 26, 27, 30, 31, 32, 35, 39, 40, 41, and 45

1шт.
