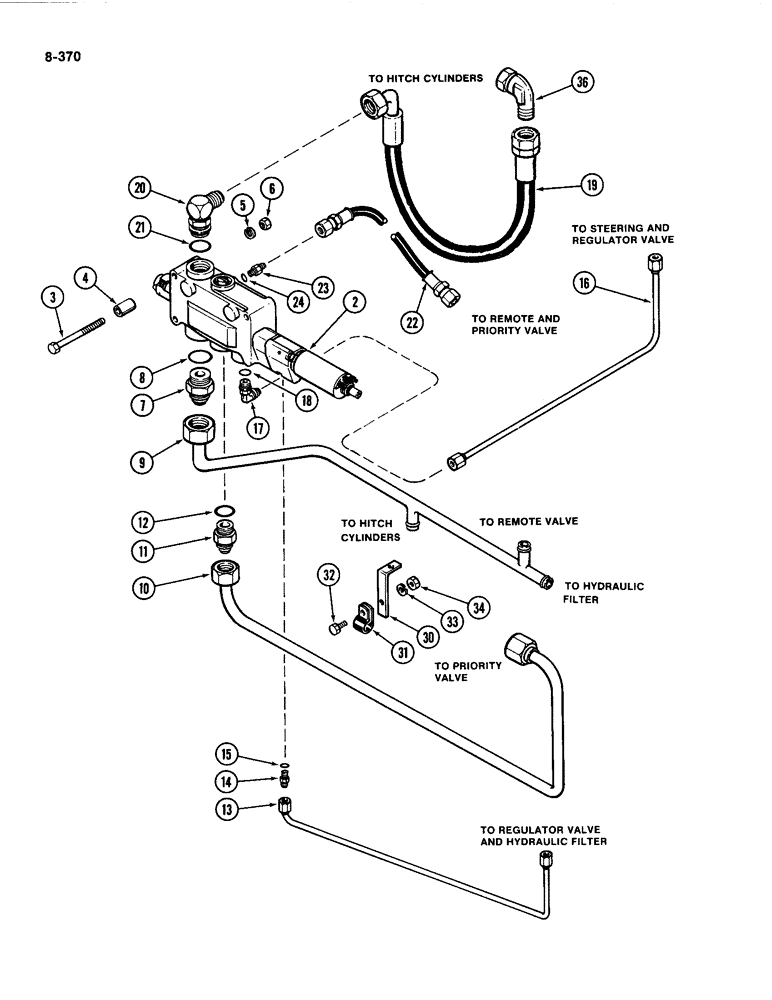

Запчасти Case IH 4494 (8-370) - HITCH CONTROL VALVE KIT (08) - HYDRAULICS

A67674

VALVE

KIT - hitch control

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-376)

1шт.

3

113-240

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

2шт.

4

A140442

BUSHING

SPACER - 13/32 x 3/4 x 1 inch (10 x 19 x 25 mm)

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-5/16-12 inch thread, Incl. Ref. 8

2шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64 inch (30 x 3 mm)

1шт.

9

A166741

TUBE

ASSEMBLY - hitch valve drain

1шт.

10

A166700

PIPE

TUBE ASSEMBLY - priority valve to hitch valve

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

13

A166724

PIPE

TUBE ASSEMBLY - hitch valve drain

1шт.

14

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-20 inch thread, Incl. Ref. 15

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 5/64 inch (9 x 2 mm)

1шт.

16

A166683

PIPE

TUBE ASSEMBLY - hitch valve to steering valve

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

19

A148749

HOSE

ASSEMBLY - hitch valve pressure

1шт.

20

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (24 x 3 mm)

1шт.

22

G35436

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

Assy - Hitch valve sensing 6.35 mm ID x 457.20 mm, SAE 100R1

1шт.

23

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Includes: Ref. 24

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 5/64 inch (9 x 2 mm)

1шт.

30

A166821

BRACKET

- drain tube

1шт.

31

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube retaining

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel

1шт.
