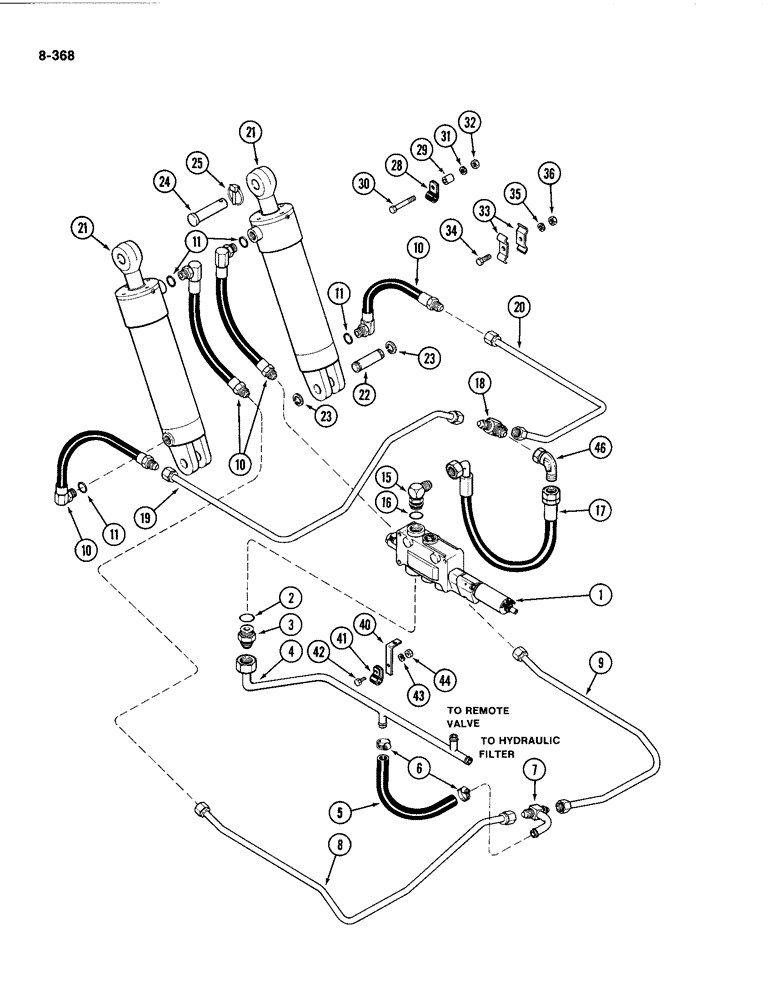

Запчасти Case IH 4494 (8-368) - HITCH CONTROL CIRCUIT, P.I.N. 8865595 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-376)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube x 1 inch tube

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64 inch (30 x 3 mm)

1шт.

4

A166741

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162206

HOSE - drain, 16 inch (406 mm) long (Order D55911 and, Serial Range: cut-length)

1шт.

D55911

HOSE

- drain, 28 inch long (711 mm)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

7

A162204

TUBE

CONNECTOR - 90 degree

1шт.

8

A162039

TUBE

ASSEMBLY - return, right

1шт.

9

A162040

TUBE

ASSEMBLY - return, left

1шт.

10

A75438

HOSE

ASSEMBLY - hitch cylinder

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32 inch (19 x 2 mm)

4шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, 3/4 tube 1/1/16-12 thread, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (24 x 3 mm)

1шт.

17

A148749

HOSE

ASSEMBLY - hitch valve pressure

1шт.

18

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- connector, 5/8 tube 7/8-14 thread x 3/4 tube 1-1/16-12 inch thread

1шт.

19

A161893

TUBE

ASSEMBLY - cylinder pressure, right

1шт.

20

A161894

TUBE

ASSEMBLY - cylinder pressure, left

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch (See Figure 8-376)

2шт.

22

A76281

PIN

- cylinder lower, 3-1/2 inch (89 mm)

2шт.

23

A12667

RING

- lower pin retaining snap

2шт.

24

A163277

PIN

- cylinder, upper, 1-1/4 inch diameter (32 mm)

2шт.

25

A30338

PIN

ASSEMBLY - klick, upper pin

2шт.

28

49885

CLAMP

- cylinder tube

4шт.

29

A140434

BUSHING

SPACER - tube clamp

2шт.

30

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

A17542

CLAMP

- tube support

4шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

40

A166821

BRACKET

- drain tube

1шт.

41

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube retaining

1шт.

42

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

46

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel (If equipped)

1шт.
