(8-366) - HITCH CONTROL CIRCUITRY, PRIOR TO P.I.N. 8865595

Запчасти Case IH 4494 (8-366) - HITCH CONTROL CIRCUITRY, PRIOR TO P.I.N. 8865595 (08) - HYDRAULICS

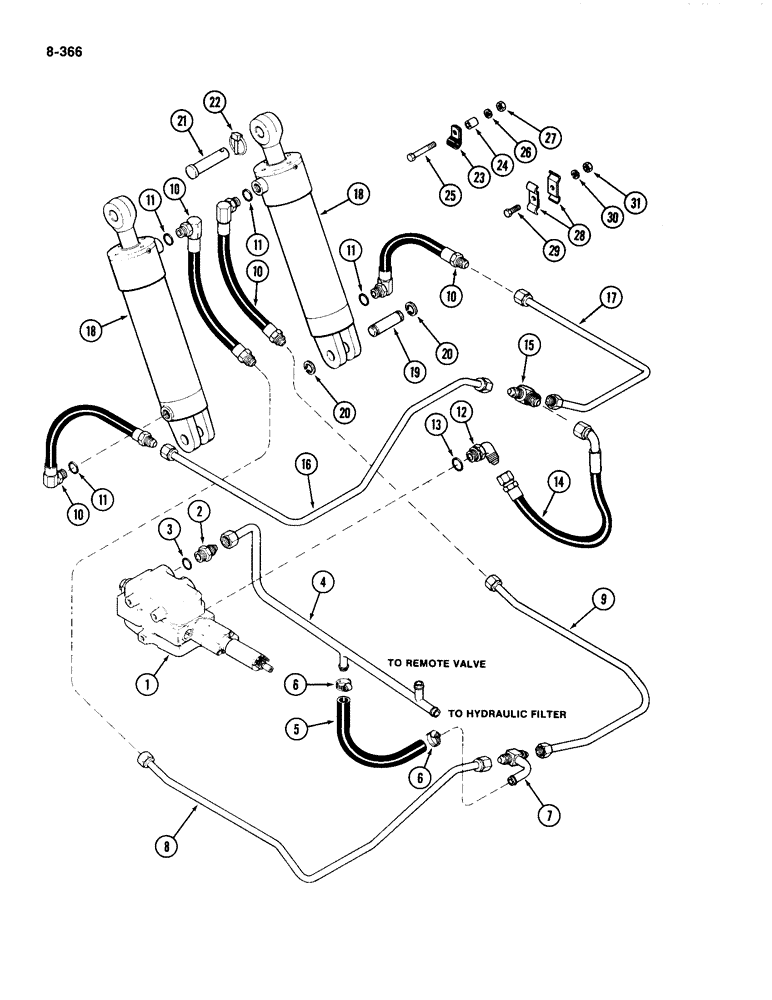

Схема запчастей Case IH 4494 - (8-366) - HITCH CONTROL CIRCUITRY, PRIOR TO P.I.N. 8865595 (08) - HYDRAULICS
3
11
14
9
15
4
22
30
5
12
20
24
20
11
18
7
16
11
2
10
31
28
19
17
26
25
6
13
23
29
8
21
11
18
10
1
10
27
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-372)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-5/16-12 inch thread, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64 inch (30 ID x 3 mm width)

1шт.

4

A162571

TUBE

ASSEMBLY - drain, hitch valve

1шт.

5

A162206

HOSE - drain, 16 inch (406 mm) long (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 45 mm)

2шт.

7

A162204

TUBE

JUNCTION - 90 degree, 5/8 hose stem x 7/8-14 inch thread

1шт.

8

A162039

TUBE

ASSEMBLY - return, right

1шт.

9

A162040

TUBE

ASSEMBLY - return, left

1шт.

10

A75438

HOSE

ASSEMBLY - hitch cylinder

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 mm width)

4шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 mm width)

1шт.

14

A148749

HOSE

ASSEMBLY - hitch valve pressure

1шт.

15

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

CONNECTOR - tee, 5/8 tube 7/8-14 thread x 3/4 tube 1-1/16-12 inch thread (Branch)

1шт.

16

A161893

TUBE

ASSEMBLY - cylinder pressure, right

1шт.

17

A161894

TUBE

ASSEMBLY - cylinder pressure, left

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch lift (See Figure 8-372)

2шт.

19

A76281

PIN

- cylinder lower, 3-1/2 inch (89 mm) long

2шт.

20

A12667

RING

- snap, lower pin

2шт.

21

A162396

PIN

- cylinder upper, 1-1/4 inch (32 mm) diameter

2шт.

22

A30338

PIN

ASSEMBLY - klick, upper pin

2шт.

23

NLS

NO LONGER SERVICED

- cylinder tube

4шт.

24

A140434

BUSHING

SPACER - tube clamp

2шт.

25

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

A17542

CLAMP

- tube support

2шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
