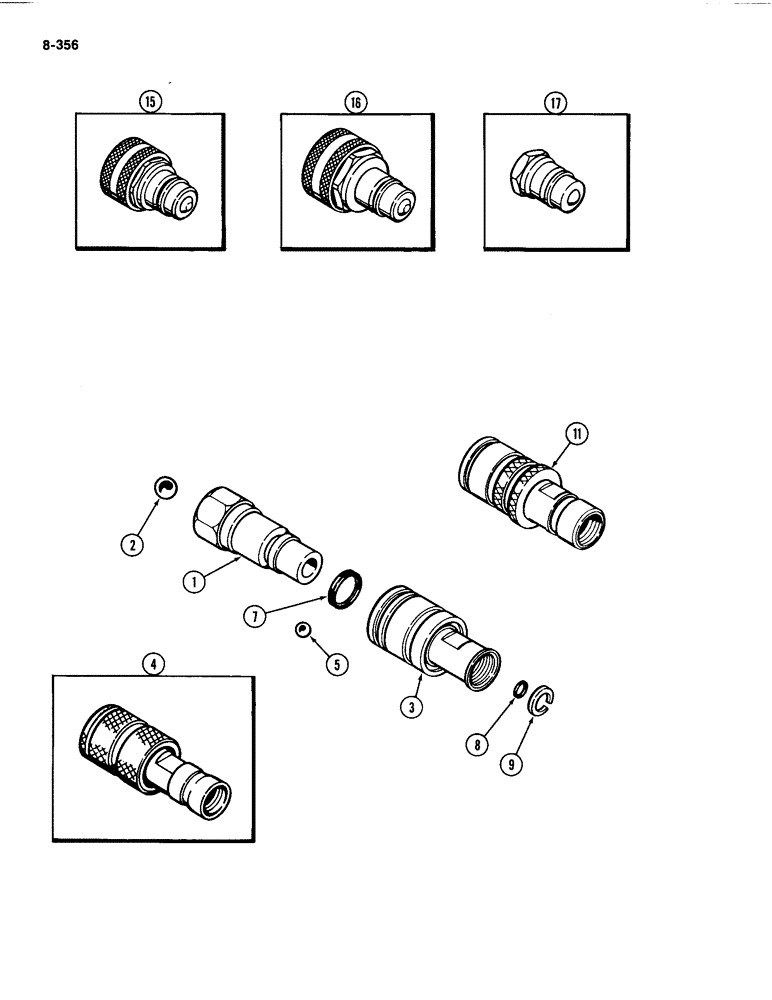

Запчасти Case IH 4494 (8-356) - REMOTE HYDRAULIC BREAKAWAY COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male breakaway (Order 272399C2)

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch (13 mm) diameter

1шт.

3

A177478

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female breakaway (Includes Ref. 5 - 9)

1шт.

4

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female breakaway (Order A177478) (Includes: Ref. 5 - 9)

1шт.

5

211-5

BALL,3/16" Dia

- 3/16 inch (5 mm) diameter

10шт.

A47220

GASKET KIT

KIT - repair, Includes: Ref. 7 - 9

1шт.

7

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

8

A47222

SEAL

- poppet

1шт.

9

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220)

1шт.

11

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female breakaway (Order A1477478)

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John deere male half to J I case A147888 female half), hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2-14 inch internal thread), hydraulic coupling

1шт.
