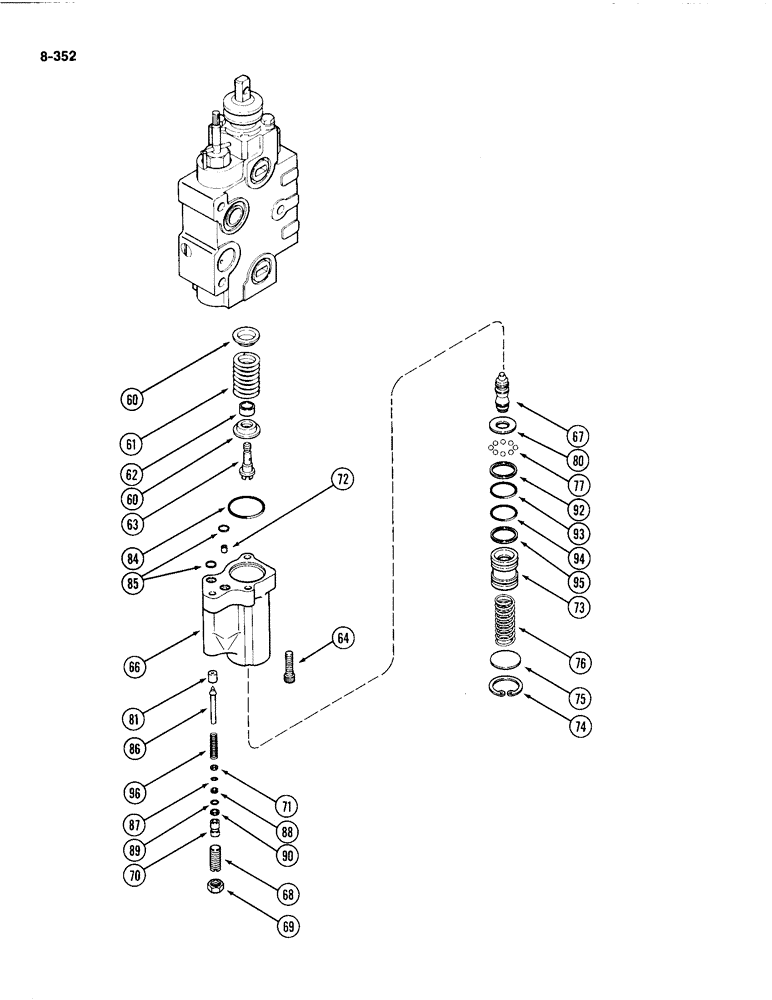

Запчасти Case IH 4494 (8-352) - REMOTE CONTROL VALVE, ADD ON FOR THIRD CIRCUIT, WITH LOAD CHECK (08) - HYDRAULICS

A169456

VALVE

ASSEMBLY - remote control, Includes: Ref. 60 - 96, 21 - 57 on fig. 8-350 and 2 - 20 on fig. 8-348

1шт.

A48945

HOUSING

BODY ASSEMBLY - remote, Includes: Ref. 60 - 96

1шт.

60

A47197

RETAINER

- spring

2шт.

61

A47177

SPRING

- centering

1шт.

62

A48930

SPACER

SPRING - detent

1шт.

63

A46923

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

64

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A48940

KIT

HOUSING KIT - detent, Includes: Ref. 66 - 96

1шт.

66

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent (Order A48940 Kit)

1шт.

67

NSS

NOT SOLD SEPARAT

SHAFT - detent (Order A48940 Kit)

1шт.

68

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

69

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

1шт.

70

A48936

GOVERNOR

PISTON - regulator

1шт.

71

A48935

WASHER

- poppet

1шт.

72

A47658

PLUG

- orifice

1шт.

73

A48932

PISTON

- kickout

1шт.

74

A30975

SNAP RING,1.188", Int, #118

1шт.

75

A48933

RING

- retainer, piston

1шт.

76

A48934

SPRING

- detent

1шт.

77

211-6

BALL,7/32" Dia

BEARING - ball, 7/32 inch (6 mm) diameter

8шт.

80

A48931

WASHER

- guide

1шт.

81

A46924

SEAT

- pilot

1шт.

A48942

KIT

SEAL KIT - detent, Includes: Ref. 84 - 96

1шт.

84

A59066

O-RING,1.239" ID x 1.379" OD

- housing

1шт.

85

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, detent

2шт.

96

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

87

363226R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- poppet (Replaces T30271)

1шт.

88

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup (Replaces C15215)

1шт.

89

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- piston

1шт.

90

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- back up

1шт.

92

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - back up

1шт.

93

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- piston

1шт.

94

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- piston

1шт.

95

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup (Replaces C14656)

1шт.

96

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.
