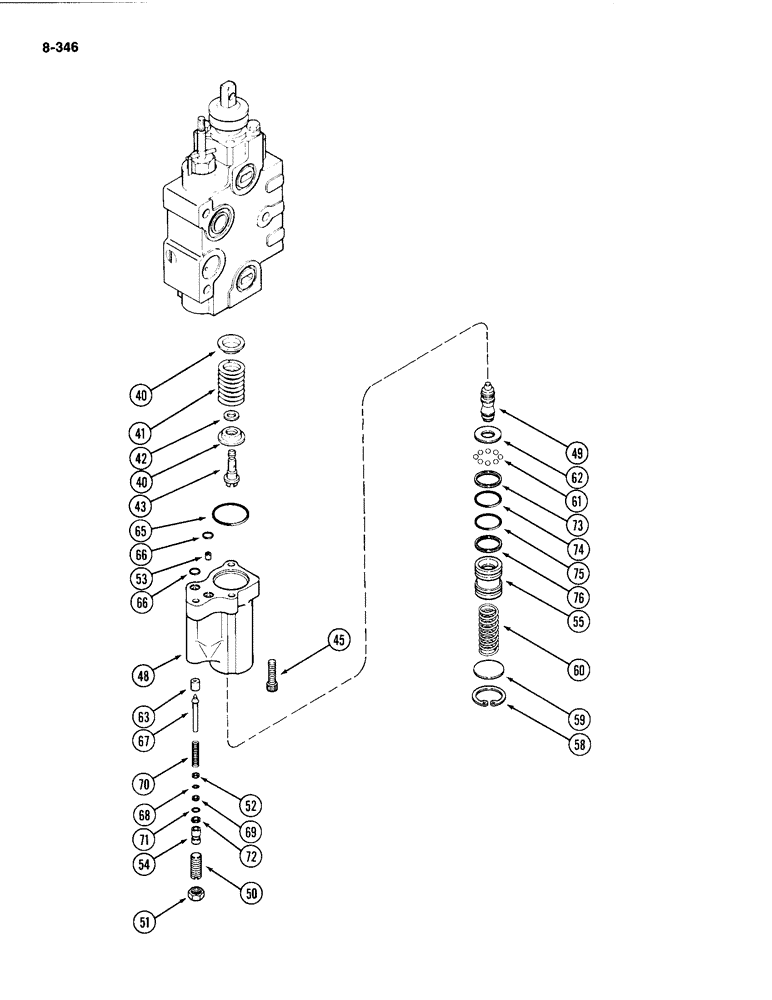

Запчасти Case IH 4494 (8-346) - REMOTE VALVE BODY ASSEMBLY, TWO CIRCUIT AND ADD ON FOR THIRD AND FOURTH CIRCUIT, WITHOUT LOAD CHECK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A169029
VALVE
BODY ASSEMBLY - remote valve, Includes: Ref. 40 - 76 and 2 - 36 on Fig. 8-344
1шт.
40
A47197
RETAINER
- spring
2шт.
41
A47177
SPRING
- centering
1шт.
42
A47199
BUSHING
SPACER - detent
1шт.
43
A47193
COUPLING, BREAK AWAY
COUPLER - detent
1шт.
A48940
KIT
HOUSING KIT - detent, Includes: Ref. 48 - 76
1шт.
48
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - detent (Order A48940 Kit), Includes: Ref. 49 - 76
1шт.
49
NSS
NOT SOLD SEPARAT
SHAFT - detent (Order A48940 Kit)
1шт.
50
A47173
SCREW,3/8" - 24 x 0.96"
- adjusting
1шт.
51
86585245
SPECIAL NUT,JAM, 5/8" - 18
- hex jam, 3/8 inch NF
1шт.
52
A48935
WASHER
- poppet
1шт.
53
A47658
PLUG
- orifice
1шт.
54
A48936
GOVERNOR
PISTON - regulator
1шт.
55
A48932
PISTON
- kickout
1шт.
58
A30975
SNAP RING,1.188", Int, #118
1шт.
59
A48933
RING
- retainer, detent
1шт.
60
A48934
SPRING
- detent
1шт.
61
211-6
BALL,7/32" Dia
BEARING - ball, 7/32 inch (6 mm) diameter
8шт.
62
A48931
WASHER
- guide
1шт.
63
A46924
SEAT
- pilot
1шт.
A48942
KIT
SEAL KIT - detent, Includes: Ref. 65 - 76
1шт.
65
A59066
O-RING,1.239" ID x 1.379" OD
- housing
1шт.
66
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, detent
2шт.
67
NSS
NOT SOLD SEPARAT
POPPET - detent
1шт.
68
A48967
CAP
O-RING - poppet
1шт.
69
A42378
WASHER
RING - backup
1шт.
70
NSS
NOT SOLD SEPARAT
SPRING - relief
1шт.
71
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- piston
1шт.
72
D71056
RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk
- back up
1шт.
73
L35295
SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk
RING - back up
1шт.
74
A62239
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
- piston
1шт.
75
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- piston
1шт.
76
A52208
SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk
RING - backup (Replaces C14656)
1шт.
Выбрано товаров: 34
