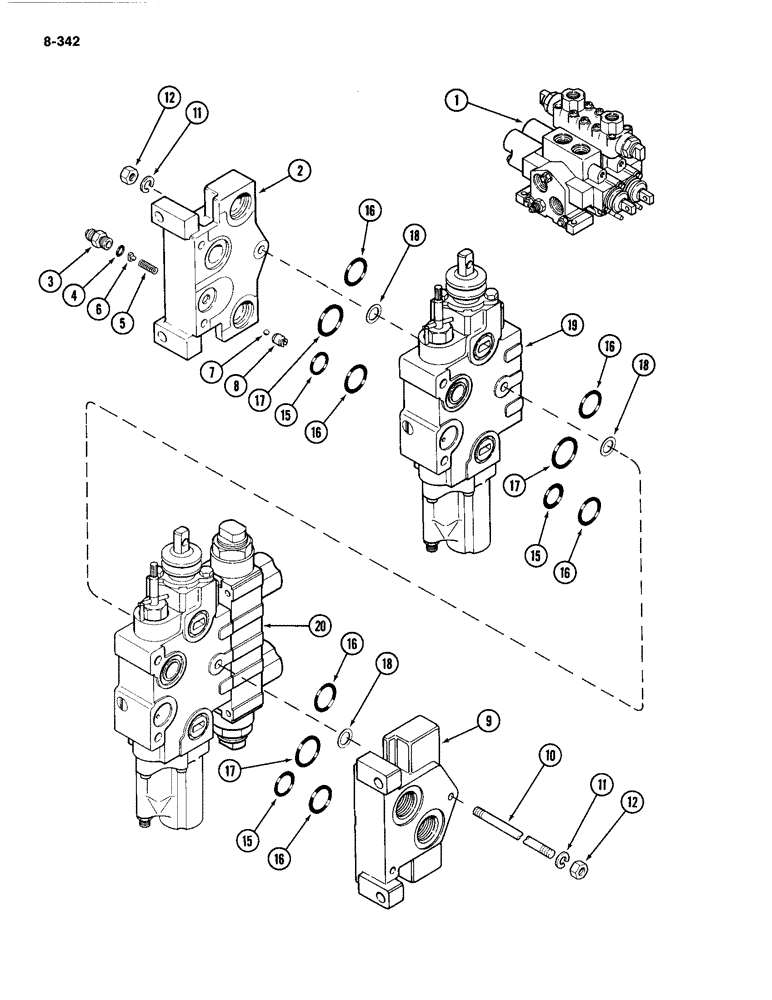

Запчасти Case IH 4494 (8-342) - REMOTE HYDRAULIC VALVE ASSEMBLY, TWO CIRCUIT SYSTEM WITH LOAD CHECK (08) - HYDRAULICS

1

A176636

VALVE

ASSEMBLY - remote hydraulic, Includes: Ref. 1 - 20

1шт.

2

A47169

COVER

ASSEMBLY - inlet, right side, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

5

A47176

SPRING

- valve, 11/16 inch (18 mm) free length

1шт.

6

A47214

RETAINER

-spring

1шт.

7

211-257

BALL,1/4" Dia

(6 mm), Steel 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- left side

1шт.

A48919

SEAL

KIT - valve seal, Includes: Ref. 10 - 18

1шт.

10

A147506

STUD

- valve retaining

3шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

15

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- 13/16 ID x 1/8 inch wide (2110 x 3 mm wide)

1шт.

16

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 ID x 1/8 inch wide (25 ID x 3 mm wide)

1шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 ID x 3/32 inch wide (24 ID x 2 mm wide)

1шт.

18

D77566

SHIM,.0030" Thk

(0.008 mm) .0030" Thk

1шт.

19

REF

INSTRUCTION

BODY ASSEMBLY - valve (Without load check) (See Figure 8-344)

1шт.

20

REF

INSTRUCTION

BODY ASSEMBLY - valve (With load check) (See Figure 8-348)

1шт.
