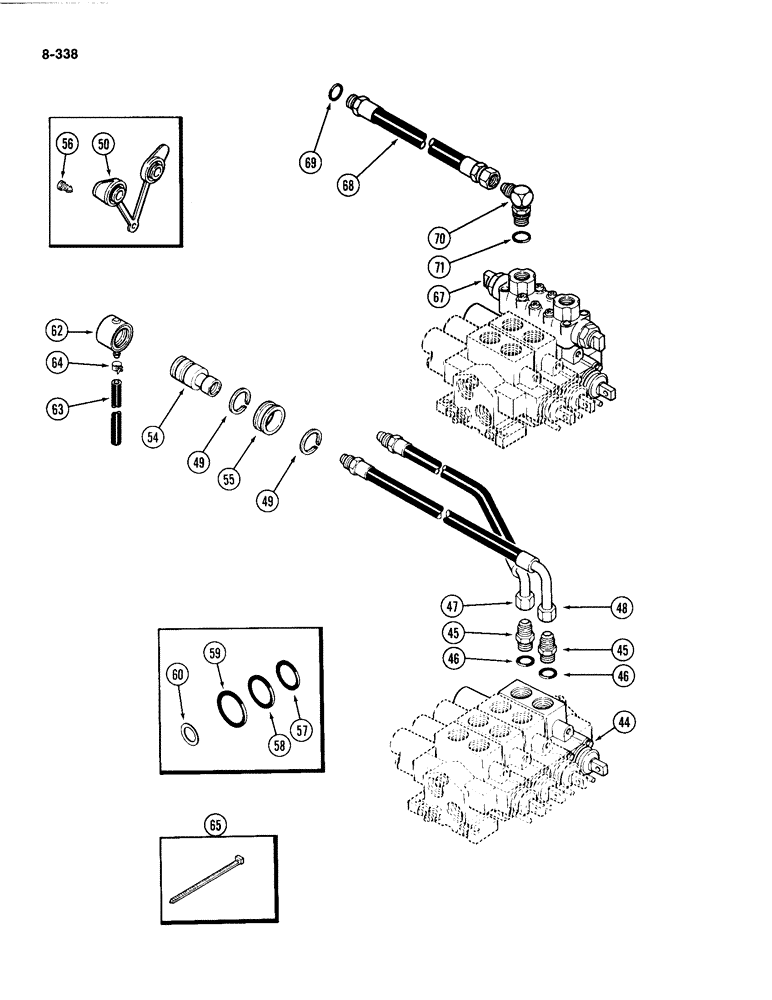

Запчасти Case IH 4494 (8-338) - REMOTE HYDRAULIC ATTACHMENT, FOURTH CIRCUIT (08) - HYDRAULICS

A181444

ATTACHMENT - remote hydraulic (without lock check) (Machinery item), Includes: Ref. 44 - 71 and 1 - 42 on Fig. 8-336

1шт.

44

REF

INSTRUCTION

VALVE - remote, fourth circuit (without lock check) (Figure 8-344), Includes: Ref. 46

1шт.

45

215-5062

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

47

A164003

HOSE

ASSEMBLY - remote, short, Includes O-ring

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

48

A164004

HOSE

ASSEMBLY - remote, long

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

49

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

50

A145468

PLUG

- dust

1шт.

54

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Figure 8-356)

2шт.

55

A149221

RETAINER

- coupling

2шт.

56

A162364

FASTENER

RETAINER - dust plug

1шт.

57

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm) ID

1шт.

58

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

2шт.

59

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

60

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

A169191

REMOTE KIT - valve (Without load check) (Includes Ref. 49 - 55 and 57 - 60 and 44) (Machinery item)

1шт.

62

A177479

CAP

ASSEMBLY - dust

2шт.

63

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

64

A180159

CLAMP,10.29mm - 12.32mm

- drain hose retaining

2шт.

65

R38237

STRAP

- retaining

1шт.

67

REF

INSTRUCTION

VALVE ASSEMBLY - remote (With load check) (See Figure 8-348)

1шт.

68

D37184

HOSE

ASSEMBLY - remote (Used with Ref. 67), Includes: Ref. 69

2шт.

69

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

70

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/14-12 inch thread, Incl. Ref. 71

2шт.

71

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

A181447

COUPLING KIT - remote (Includes Ref. 54 and 62 - 65) (Machinery item)

1шт.
