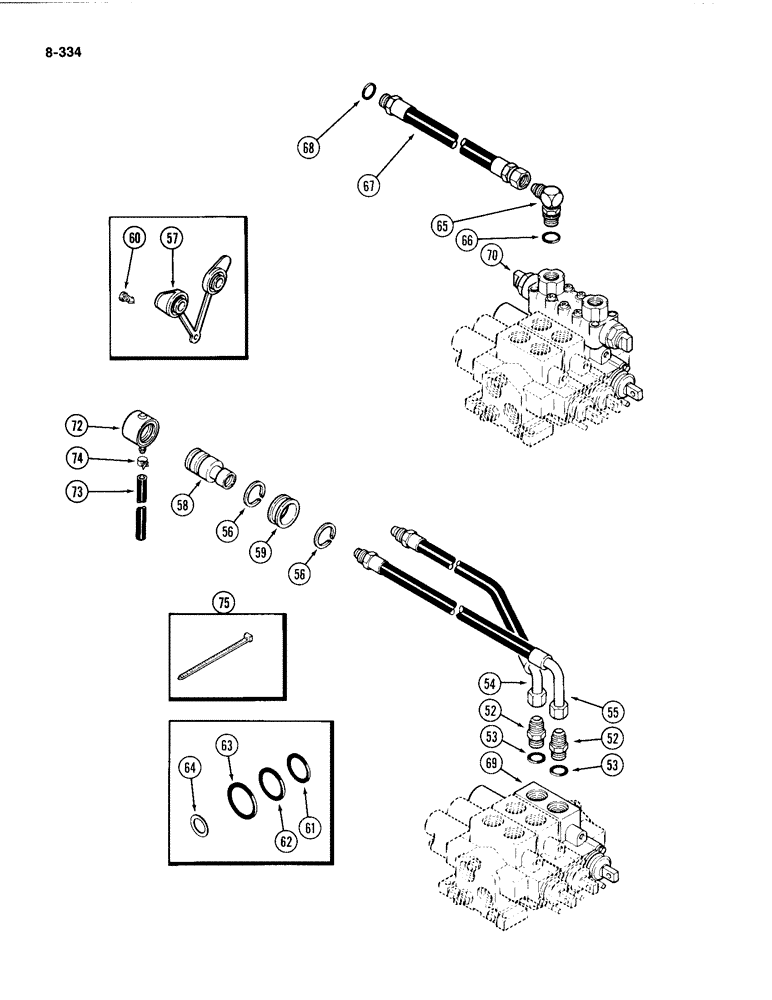

Запчасти Case IH 4494 (8-334) - REMOTE HYDRAULIC ATTACHMENT, THIRD CIRCUIT (08) - HYDRAULICS

A181442

ATTACHMENT - remote hydraulic, without load check (Machinery item) (Replaces A167631) (Continued from Figure 8-332), Includes: Ref. 52 - 70 and 1 - 51 on Fig. 8-332

1шт.

A181443

ATTACHMENT - remote hydraulic (With load check) (Machinery item) (Replaces A167633), Includes: Ref. 52 - 70 and Fig. 1 - 51 on fig. 8-332

1шт.

52

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

54

A181775

HYDRAULIC HOSE,12.70 mm ID x 559.00 mm

- Remote, Short (Used with Ref. 1) (Includes O-ring, See Ref. 68) (Replaces A162486) 12.70 mm ID x 559.00 mm

1шт.

55

A181774

HOSE,12.70 mm ID x 495.00 mm, SAE J516

- Remote, Long (Used with Ref. 1) (Includes O-ring, See Ref. 68) (Replaces A162487) 12.70 mm ID x 495.00 mm, SAE J516

1шт.

56

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

57

A145468

PLUG

- dust

1шт.

58

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Fig. 8-356)

2шт.

59

A149221

RETAINER

- coupling

2шт.

60

A162364

FASTENER

RETAINER - dust plug

1шт.

61

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm) ID

1шт.

62

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

2шт.

63

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

64

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

65

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable 5/8 tube 7/8-14 inch thread (Used with Ref. 2)

2шт.

66

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

67

D37184

HOSE

ASSEMBLY - remote (Used with Ref. 2)

2шт.

68

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

69

REF

INSTRUCTION

VALVE ASSEMBLY - third circuit (Without load check) (See Figure 8-344)

1шт.

70

REF

INSTRUCTION

VALVE ASSEMBLY - third circuit (With load check) (See Figure 8-348)

1шт.

A169191

REMOTE KIT - valve (Without load check) (Includes Ref. 56 - 59, 61 - 64 and 69) (Machinery item)

1шт.

72

A177479

CAP

ASSEMBLY - dust

2шт.

73

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

74

A180159

CLAMP,10.29mm - 12.32mm

- drain hose retaining

2шт.

75

R38237

STRAP

- retaining

1шт.

A181447

COUPLING KIT - remote (Includes Ref. 56 - 58 and 72 - 75) (Machinery item)

1шт.
