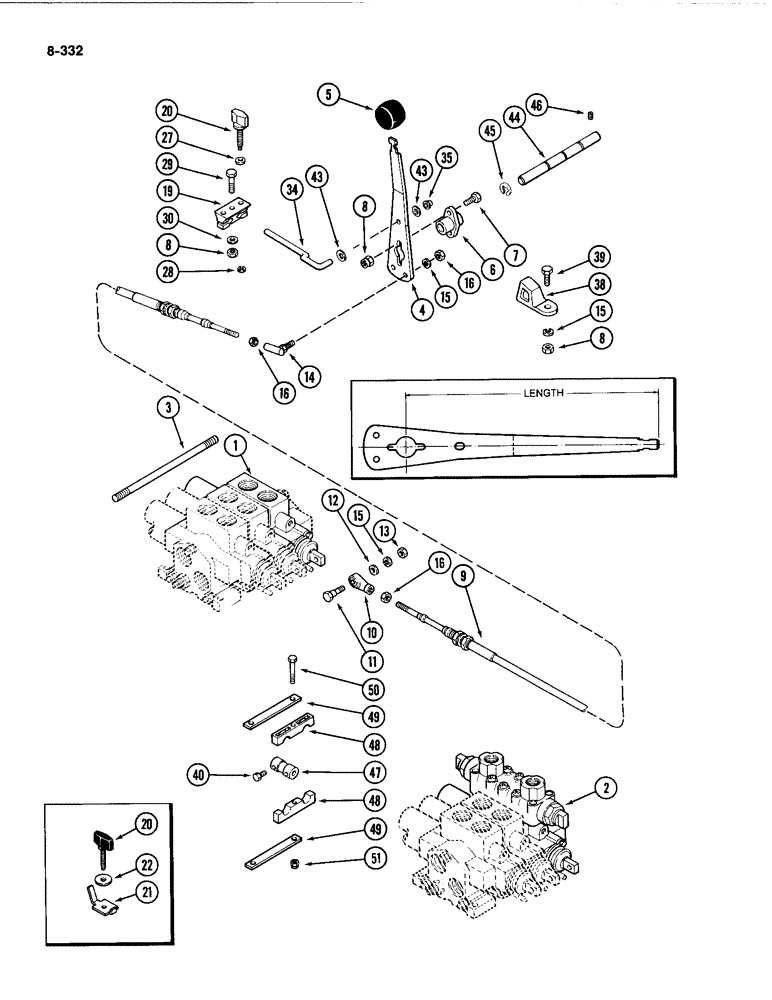

Запчасти Case IH 4494 (8-332) - REMOTE HYDRAULIC ATTACHMENT, CONTINUED ON NEXT PAGE (08) - HYDRAULICS

A181442

ATTACHMENT - remote hydraulic, without load check (Machinery item) (Replaces A167631), Includes: Ref. 1 - 51 and 52 - 70 on Fig. 8-334

1шт.

A181443

ATTACHMENT - remote hydraulic (With load check) (Machinery item) (Replaces A167633), Includes: Ref. 1 - 51 and 52 - 70 on Fig. 8-334

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (Without load check) (See Figure 8-344)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - remote (With load check) (See Figure 8-348)

1шт.

3

A14757

STUD - valve body

3шт.

4

A181264

LEVER

- remote, inner, 13 inch long (324 mm) (See Inset)

1шт.

4

A166912

LEVER

- remote, inner, 10 inch long (249 mm) (See Inset)

1шт.

5

A177435

BALL KNOB

KNOB - lever (Replaces A137806)

1шт.

6

A162299

BEARING,15.95mm ID

- lever

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

9

A152757

CABLE

ASSEMBLY - remote control

1шт.

10

A146456

BALL

JOINT - ball, cable to valve spool

1шт.

11

A148510

BOLT

- shoulder

1шт.

12

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 (7x 16 x 2 mm)

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSEMBLY - ball

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

19

A166866

BLOCK

- friction

1шт.

20

A162958

BUTTON

KNOB - lever stop

1шт.

21

A176175

CLAMP

- stop

1шт.

22

195-128

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch (10 x 29 x 2 mm)

1шт.

27

K651904

WASHER

- nylon

1шт.

28

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

29

113-74

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- hex, 1/4 NC x 1-1/4 inch

1шт.

30

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 (7 x 16 x 2 mm)

1шт.

34

A180609

LOCK

ROD - lever lock (Replaces A166899)

1шт.

35

131-433

PUSH-ON NUT,Push, 1/4"

PUSH NUT - round flat, 1/4 inch

1шт.

37

A141542

LEVER

TAB - float lockout

1шт.

39

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

40

187-985

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex blunt point, no. 10 x 3/8 inch

4шт.

43

A167037

WASHER

- lock rod

4шт.

44

A162325

SHAFT

- lever

1шт.

45

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

46

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch

1шт.

47

A164240

SPOOL

- flow control

2шт.

48

A164241

BLOCK

- flow control (If equipped)

2шт.

49

H252767

STRAP

- back up

2шт.

50

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

51

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.
