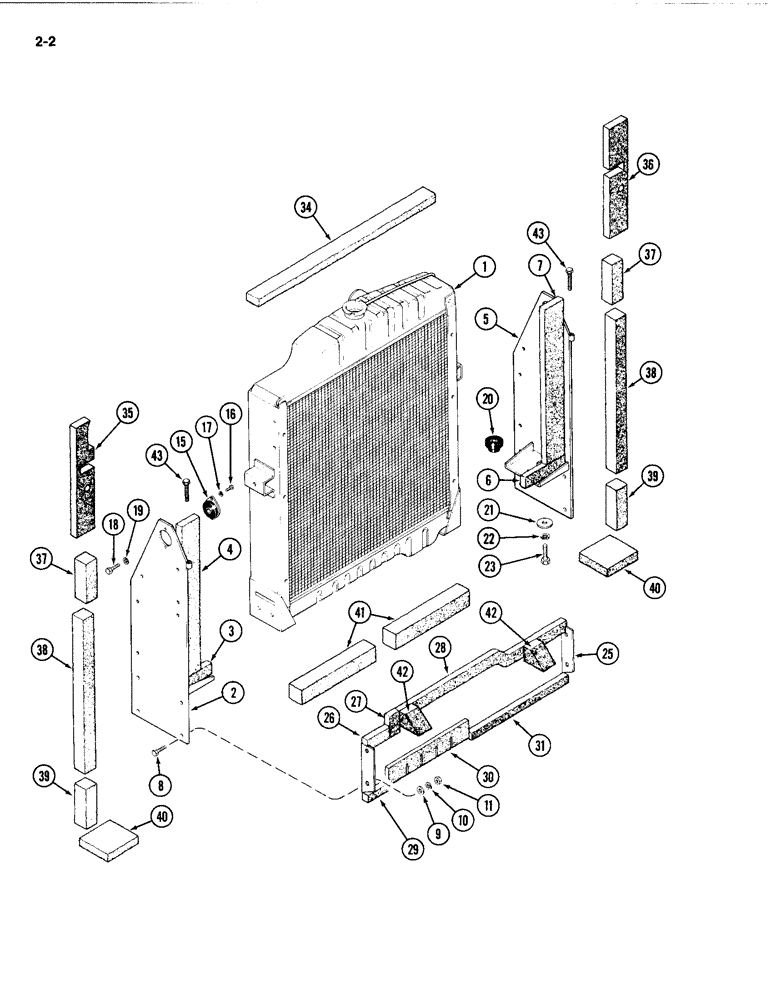

Запчасти Case IH 4494 (2-002) - RADIATOR SUPPORT AND SEALS, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - engine coolant (See Figure 2-4)

1шт.

2

A151473

SUPPORT

ASSEMBLY - right side, radiator

1шт.

3

A152089

SEAL

- by-pass, right, 3/4 x 1-1/2 x 4-9/16 inch (19 x 38 x 116 mm) (Cut from A152094 with pressure sensitive adhesive)

1шт.

4

A152093

SEAL

- inner, 3/4 x 3 x 21-13/16 inch (20 x 76 x 554 mm)

1шт.

Attach with adhesive 345-22.

1шт.

5

A151476

SUPPORT

ASSEMBLY - left side, radiator

1шт.

6

A152090

SEAL

- bypass, left, 3/4 x 1-1/2 x 6-1/2 inch (19 x 38 x 225 mm) (Cut from A152094 with pressure sensitive adhesive)

1шт.

7

A152093

SEAL

- inner, 3/4 x 3 x 21-13/16 inch (20 x 76 x 554 mm)

1шт.

Attach with adhesive 345-22.

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

9

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm) (front bolts only)

8шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

16

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, no. 10-24 x 1/2 inch

4шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

A142542

MOUNTING PARTS

MOUNT - radiator to lower support

2шт.

21

51200247

WASHER

- 9/16 x 1-3/4 x 9/64 inch (14 x 44 x 4 mm), Transmission Case Cover Gasket

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

25

A152083

BAFFLE

ASSEMBLY - lower

1шт.

26

A152086

SEAL

- upper right, 3/4 x 1-1/2 x 3-29/32 inch (20 x 38 x 99 mm) (Cut from A152088)

1шт.

Attach with adhesive 345-22.

1шт.

27

A152087

SEAL

- upper center, 3/4 x 1-1/2 x 2-29/32 inch (20 x 38 x 99 mm) (Cut from A152088)

1шт.

Attach with adhesive 345-22.

1шт.

28

A152088

SEAL

- upper center, 3/4 x 1-1/2 x 28-1/8 inch (20 x 38 x 712 mm)

1шт.

Attach with adhesive 345-22.

1шт.

29

A152091

SEAL

- lower right, 3/4 x 1 x 3-29/32 inch (20 x 25 x 99 mm) (Cut from A152088)

1шт.

Attach with adhesive 345-22.

1шт.

30

A152085

SEAL

- split, lower center

1шт.

Attach with adhesive 345-22.

1шт.

31

A152092

SEAL

- lower left, 3/4 x 1 x 15-9/16 inch (20 x 25 x 381 mm)

1шт.

Attach with adhesive 345-22.

1шт.

34

A149928

SEAL

- top, 1 x 2 x 28-1/2 inch (25 x 51 x 725 mm)

1шт.

Attach with adhesive 345-22.

1шт.

35

A160475

SEAL

- top right radiator

1шт.

36

A160476

SEAL

- top left radiator

1шт.

37

A149923

SEAL

- hood side lower, 1-1/2 square x 5-1/2 inch (38 x 140 mm)

2шт.

Attach with adhesive 345-22.

1шт.

38

A149924

SEAL

- side panel, 2 square x 21 inch (51 x 533 mm)

2шт.

Attach with adhesive 345-22.

1шт.

39

A149925

SEAL

- lower grille, 1-3/4 square x 4-1/2 inch (44 x 114 mm)

2шт.

Attach with adhesive 345-22.

1шт.

40

A149926

SEAL

- bottom corner, 5 square x 1 inch (127 x 254 mm)

2шт.

Attach with adhesive 345-22.

1шт.

41

A149927

SEAL

- bottom front, 2 square x 15 inch (51 x 381 mm) (Cut from A150488 with pressure sensitive adhesive)

2шт.

42

A165329

FOAM

SEAL - bottom front

4шт.

43

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.
