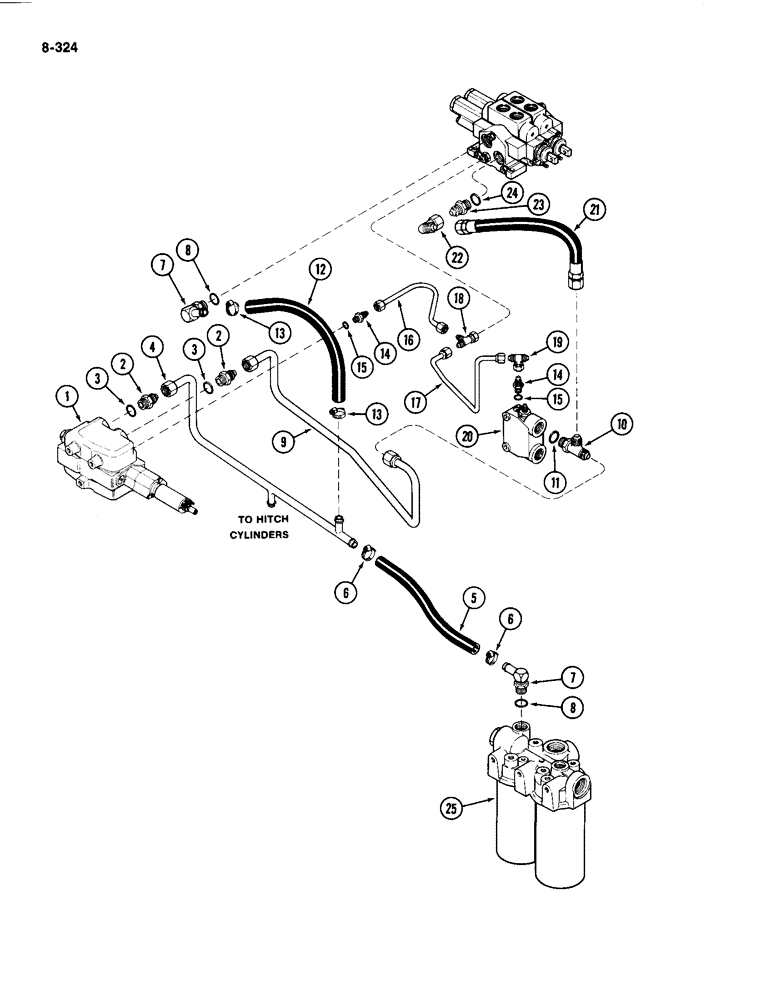

Запчасти Case IH 4494 (8-324) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8865595 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-372)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-5/16 inch thread, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (24 ID x 3 mm width)

1шт.

4

A162571

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162205

HOSE - tube to filter, 9-1/2 inch (241 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 (30 mm) to 1-3/4 inch (45 mm)

2шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree adjustable, 3/4 hose stem x 3/4 tube 1-1/16 inch thread, Incl. Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 mm width)

1шт.

9

A162570

TUBE

ASSEMBLY - priority valve to hitch valve

1шт.

10

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tee, 3/4 tube with 1-1/16 inch thread, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 mm width)

1шт.

12

A162207

HOSE - remote valve drain, 23 inch (584 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 (30 mm) to 1-3/4 inch (45 mm)

2шт.

14

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8 inch tube 9/16 inch thread x 1/4 tube 7/16 inch thread, Includes: Ref. 15

2шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64 inch width (9 ID x 2 mm width)

1шт.

16

A162568

TUBE

ASSEMBLY - hitch valve sensing

1шт.

17

G35436

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

Assy - Priority valve to hitch (Replaces A161899) 6.35 mm ID x 457.20 mm, SAE 100R1

1шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

CONNECTOR ASSEMBLY - swivel tee, 3/8 tube 9/16 inch thread

1шт.

19

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR ASSEMBLY - swivel tee, 3/8 tube 9/16 inch thread

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-134)

1шт.

21

A140575

HOSE

Priority Valve to Remote Valve

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/4 tube 1-1/16 inch thread

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16 inch thread, Incl. Ref. 24

1шт.

24

128-5008

O-RING - 15/16 ID x 7/64 inch width (23 ID x 3 mm width)

1шт.

25

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-302)

1шт.
