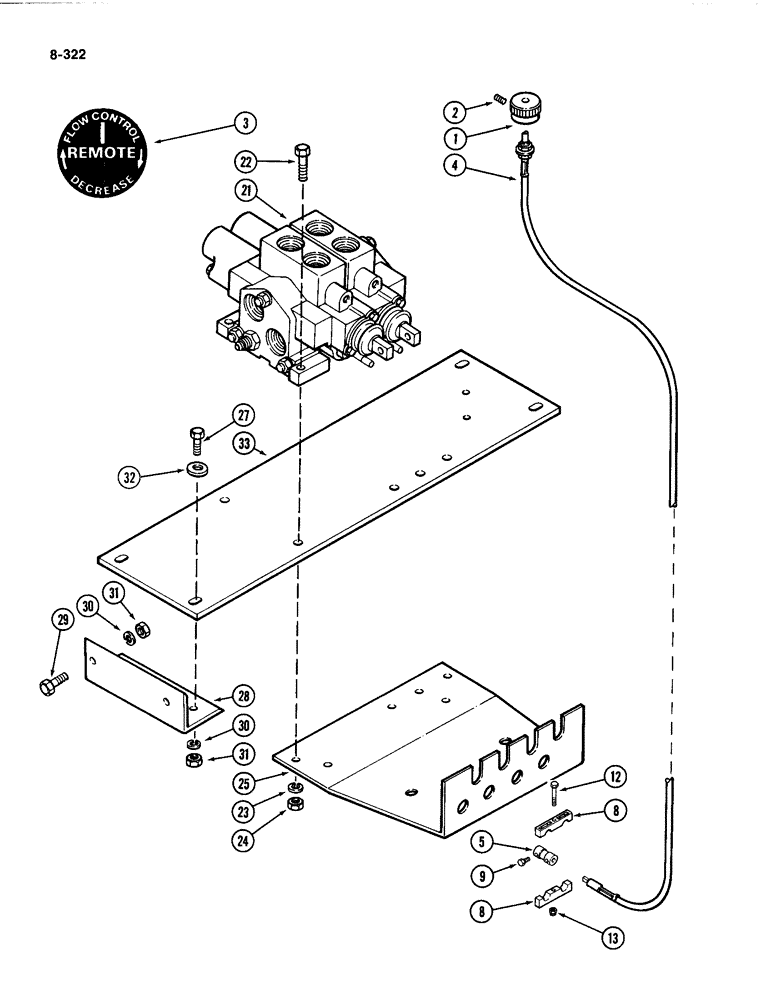

Запчасти Case IH 4494 (8-322) - REMOTE HYDRAULIC VALVE FLOW CONTROLS (08) - HYDRAULICS

A167630

PACKAGE, REPAIR

ATTACHMENT - remote flow control (Machinery item)

1шт.

1

A160814

KNOB

- flow control (Replaces A145805)

1шт.

2

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - socket head set, no. 10-32 x 1/4 inch

1шт.

3

321-4129

DECAL

- control knob

1шт.

4

A161343

CABLE

- control, Serial Range: knob-valve

1шт.

5

A164240

SPOOL

- flow control

2шт.

8

A164241

BLOCK

- flow control

2шт.

9

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self tapping, No. 10-24 x 3/8 inch

2шт.

12

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

13

131-204

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, 2 circuit (See Figure 8-340), mounting

1шт.

22

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1 3/4", G5

3шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Remote hydraulic valve mounting 3/8"

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Remote hydraulic valve mounting 3/8"-16, G5

3шт.

25

A152128

BRACKET

- control cable, remote valve, hydraulic mounting

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

28

A148390

BRACKET

ANGLE - spport, mounting plate, remote hydraulic valve mounting

2шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Remote hydraulic valve mounting 3/8"

8шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Remote hydraulic valve mounting 3/8"-16, G5

8шт.

32

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), remote hydraulic valve mounting

4шт.

33

A176093

PLATE ASSY.

PLATE - mounting, remote valve, hydraulic

1шт.
