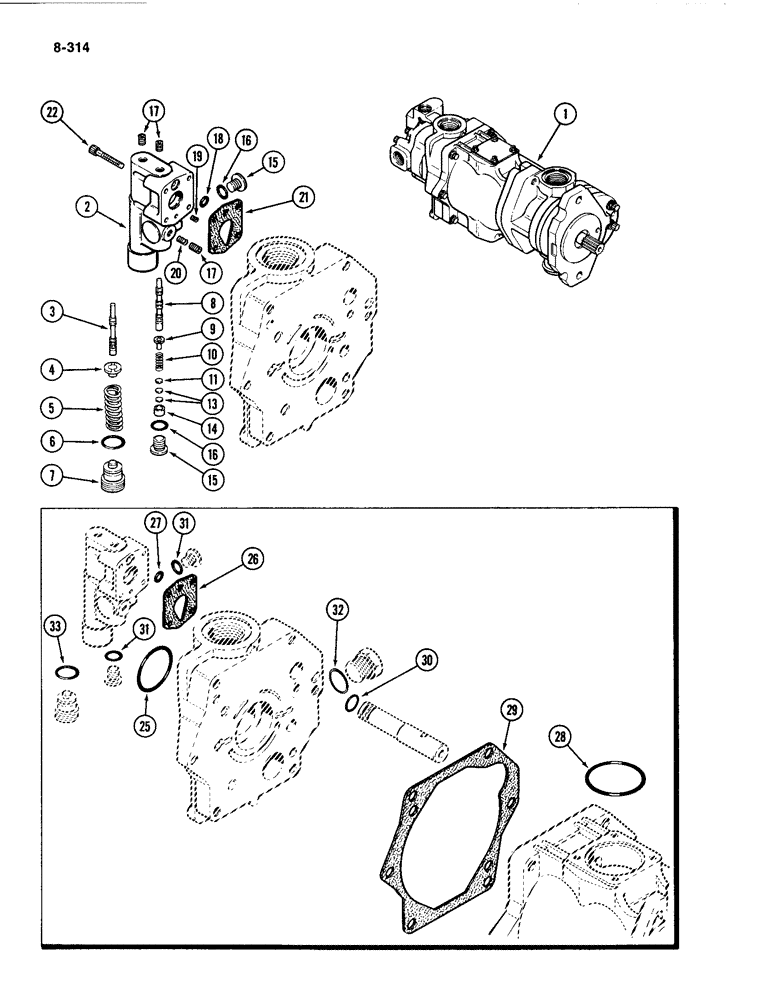

Запчасти Case IH 4494 (8-314) - TRIPLE HYDRAULIC PUMP ASSEMBLY, COMPENSATOR ASSEMBLY (08) - HYDRAULICS

1

A166507

HYDRAULIC PUMP

PUMP ASSEMBLY - triple hydraulic, Includes: Ref. 2 - 22

1шт.

129330A1R

REMAN-HYD PUMP

4494 (1/83-12/87), Center Section (Piston Pump) Only.

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

A49494

VALVE

COMPENSATOR ASSEMBLY - pump (Order P/N A52401 - See Figure 8-318), Includes: Ref. 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A47316

SPOOL

- pressure limiter

1шт.

4

A47317

PLUG

SEAT - spool, pressure limiter

1шт.

5

A47318

SPRING

- spool, pressure limiter

1шт.

6

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 inch (14 mm) ID

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

7

A47320

PLUG

- adjusting, pressure limiter

1шт.

8

A47321

SPOOL

- load sensing

1шт.

9

A49442

SEAT

- spool, load sensing

1шт.

10

A49434

PIPE

SPRING - spool, load sensing

1шт.

11

A47324

DISC

- load sensing

1шт.

A47325

KIT

- shim, load sensing spool, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (0.127 mm)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.254 mm)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch (0.508 mm)

1шт.

14

A47326

CUP

- load sensing shim

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

Assy, Incl Ref 16 Hex Soc, 7/16"-20 ORB

2шт.

16

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 ID x 5/64 inch width (10 ID x 2 mm width)

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

17

221-820

PLUG - socket head, 1/16 inch PT

3шт.

18

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 ID x 1/16 inch width (8 ID x 2 mm width)

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

19

A47645

PLUG

- valve body

1шт.

20

A47327

FITTING

ORIFICE - valve body

1шт.

21

A47328

GASKET

- valve body

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

22

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - socket head cap, no. 10-24 x 1-1/4 inch socket head

4шт.

A47567

KIT

- seal and gasket, Includes Refs. 6, 16, 18 and 21, Includes: Ref. 25 - 33 and part's on Figures 8-308, 310 and 312

1шт.

25

F98069

O-RING

- gear pump to piston, and compensator kit

1шт.

26

A47328

GASKET

- compensator to piston pump, kit

1шт.

27

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 inch (8 mm) ID, piston pump and compensator kit

1шт.

28

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- 2-1/4 inch (57 mm) ID, piston pump and compensator kit

2шт.

29

A47280

GASKET,0.53mm Thk

- piston pump body, and compensator kit

1шт.

30

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- 1/2 inch (12 mm) ID, piston pump and compensator kit

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64 inch width (9 ID x 2 mm width), piston pump and compensator kit

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 mm width), piston pump and compensator kit

1шт.

33

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 inch (14 mm) ID, piston pump and compensator kit

1шт.
