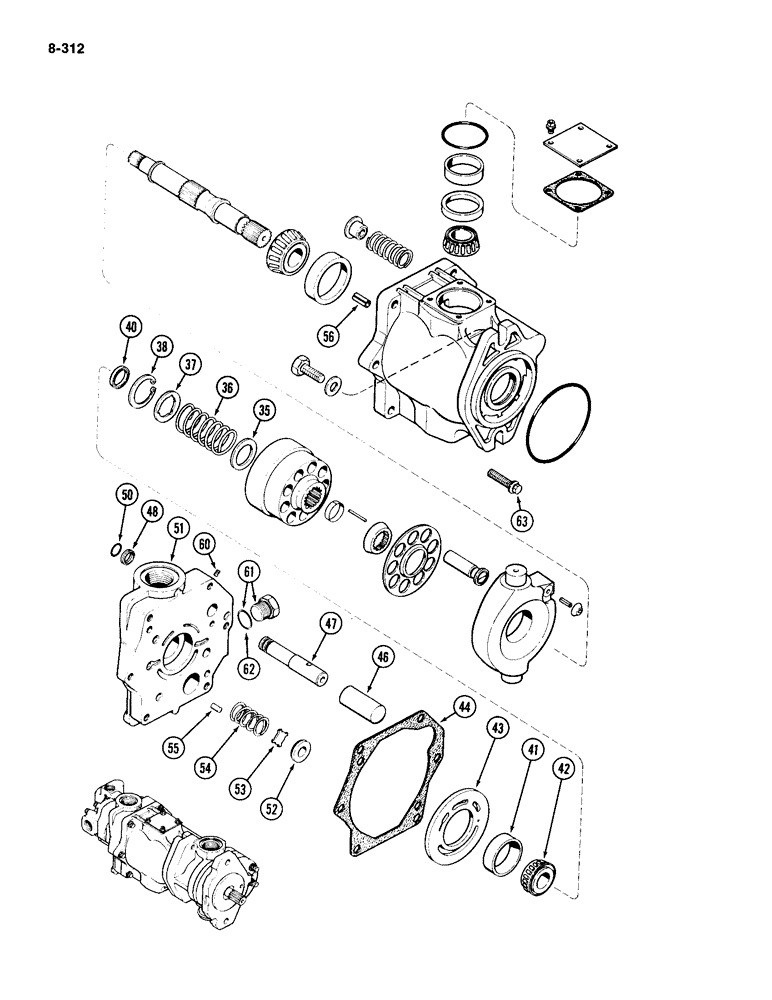

Запчасти Case IH 4494 (8-312) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

A166507

HYDRAULIC PUMP

PUMP ASSEMBLY - triple hydraulic (Continued from Figure 8-310), Includes: Ref. 35 - 63 and 1 - 33 on Fig. 8-310

1шт.

129330A1R

REMAN-HYD PUMP

4494 (1/83-12/87), Center Section (Piston Pump) Only.

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

35

A47299

WASHER

- spring front

1шт.

36

A47298

SPRING

- cylinder block

1шт.

37

A47300

SPRING WASHER

WASHER - spring gear

1шт.

38

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

A47303

KIT

- spacer, rear bearing

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.139 inch (3.53 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.142 inch (3.61 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.145 inch (3.68 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.148 inch (3.76 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.151 inch (3.84 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.154 inch (3.91 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.157 inch (3.99 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.160 inch (4.06 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.163 inch (4.14 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.166 inch (4.22 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SPACER - 0.169 inch (4.29 mm)

1шт.

41

FB14849

BEARING CUP

- rear bearing, 1-31/32 inch (50 mm) O.D.

1шт.

42

FB14850

ROLLER BEARING

CONE - rear bearing, 27/32 inch (21 mm) ID

1шт.

43

A47635

PLATE

- wafer

1шт.

44

A47280

GASKET,0.53mm Thk

- body

1шт.

A47305

KIT

- piston rod

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - pump

1шт.

47

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

48

A47340

RING

- snap

1шт.

50

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- compensator

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

51

A49443

BLOCK

- valve

1шт.

52

A47306

PLUG

SEAT - check valve

1шт.

53

A47307

VALVE

- check

1шт.

54

A47308

SPRING

- check valve

1шт.

55

A47309

PIN

- 1/4 x 1/2 inch (6 x 13 mm)

1шт.

56

A47301

PIN

-, Serial Range: block-housing

2шт.

60

221-1849

PLUG

- square head, 1/8 inch PT

1шт.

61

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 7/8-14 inch thread

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch width (19ID x 2 mm width)

1шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

63

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - 12 point cap, 3/8 NC x 1-1/2 inch

6шт.

A47567

KIT

- seal and gasket, Includes: ref. no. 50 and 62, See Figure 8-314

1шт.
